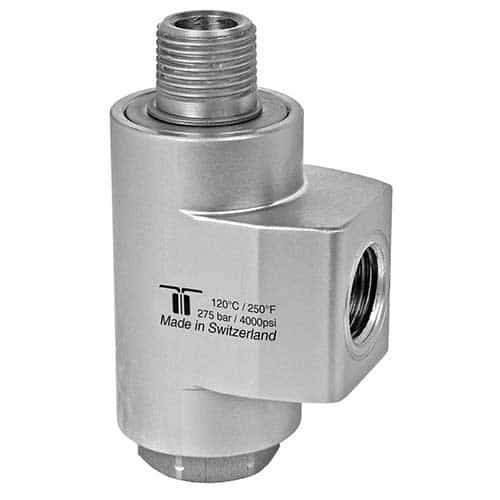

Dual Bearing Swivel

Features a dual bearing system. Constructed with stainless steel. Designed for use in ceiling booms, high pressure hose reels, and high-pressure cleaners.

Specifications:

• Pressure: 4000 Psi (27.5 MPa)

• Temperature: 250°F

• RPM: See Chart (Max. Rpm)

• Body: Brass, Nickel Plated

• Inner Part: Stainless Steel

• Seal: O-Ring NBR (Optional: EPDM or FKM)

• Bearing: WDB: Sliding Bearing, WDBL: 2x Radial Ball Bearings, WDBS: 2x Radial Ball Bearings

• Throughput: Ph 3-12

• Medium: Filtered 10 Microns, Compressed Air (290 Psi)


Dimensions:

• G1 (F) 3/8" NPTF

• G2 (M) 3/8" NPTM

• NW 3/8"

• H 2.20

• L1 1.77

• L2 3.07

• L3 1.14

• L4 1.70

• L5 0.43

• SW 0.87

• Max RPM: 200

• Weight 18.5oz


Features:

• Slide or dual bearings systems

• Stainless steel

• Maintenance free


Applications:

• Ceiling Booms

• High Pressure Hose Reels

• High Pressure Cleaners
