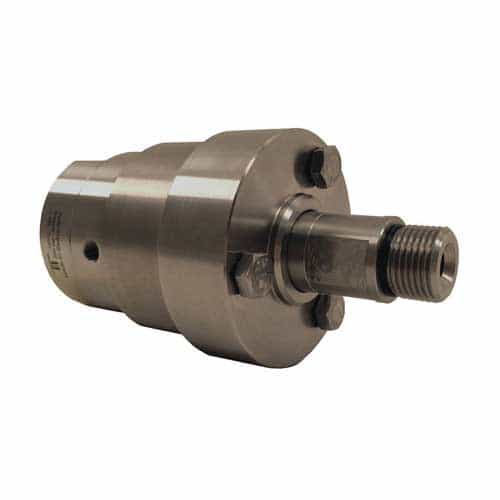

Mosmatic 59.463 Stainless Steel DYT 90 Degree Quadruple Bearing Swivel - 3/8in. F x M, 5000 PSI

Brand:
Mfr. Model #:
59.463
KR Part #:
SWM59463
Weight:
2.80 lbs
Availability:
1
Low Stock Warning
Add to Cart for Price
Rotating 90 degree angle swivel made with stainless steel and carbide seals. Ideal for applications with high pressure, RPM, thrust and radial force.



Technical Specifications

Max PSI: 5000
Max Temperature: 250 degrees F
RPM: 2000
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch

Product Description

Single-Flow Self-Rotating Swivel

The Mosmatic 59.463 self-rotating swivel is made with stainless steel and has 3/8" ports. It is rated to handle up to 5000 psi, 2000 rpm, and temps up to 250° Fahrenheit.

Rotary unions allow you to transfer fluids from stationary items like hose and piping to rotating devices in car wash systems, industrial machine cleaning, and surface cleaners.
Specifications:

  • Inlet: 3/8" (F) NPT
  • Outlet: 3/8" (M) G
  • Maximum Pressure: 5000 PSI
  • Maximum Speed: 2000 RPM
  • Maximum Temperature: 250° Fahrenheit
  • Body Diameter: 2.36"Body Construction: Stainless steel
  • Type: 90° angle
  • Quadruple bearing
  • Carbide seal
  • Self-rotating
  • Standards: ISO 9001
  • Throughput Medium: pH 3-12 filtered 10 microns compressed air
  • Seal failure warning through weep holes
