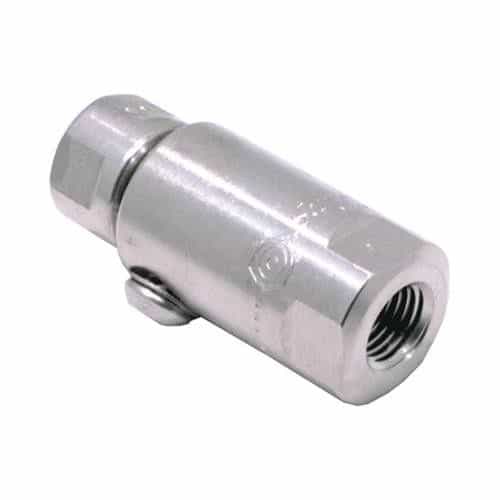

Super Swivel 1004 Nickel Plated Carbon Steel Inline Swivel - 1/4 F x 1/4 F, 5000 PSI
Brand:
Mfr. Model #:
1004 NI-AL
KR Part #:
SWS04FF
Weight:
0.28 lbs
In Stock
Nickel plated steel body straight swivel to avoid hose kinking and damage. 5000 PSI, 1/4" NPT-F x 1/4" NPT-F.
Technical Specifications
Inlet Port: 1/4 inch
Max PSI: 5000
Product Description
5000 PSI Steel Single Plane Swivel
The Super Swivel 1004 is made with nickel plated carbon steel that is excellent for mildly corrosive environments where water, mild chemicals, and solvents are used. The Super Swivel 1004 is a straight inline swivel with 1/4" NPTF stem and body thread connections. Includes Aflas seals that are chemical resistant and ideal for high-temperature applications. Rated for up 5000 PSI.
Dimensions: 2.32" Length x .992" Body Diameter
Specifications:
- 5000 PSI
- Aflas seals - chemical resistant, high-temp
- 1/4"-18 NPTF stem thread
- 1/4"-18 NPTF body thread
- Size #4
- 3 GPM at 20 feet/second fluid velocity
- Through Hole: .25"
- Stem Wrench: .750"
- Body Wrench: .875"
- Nickel plated carbon steel construction
- Bleed orifice that allows water to escape when grease is being applied
