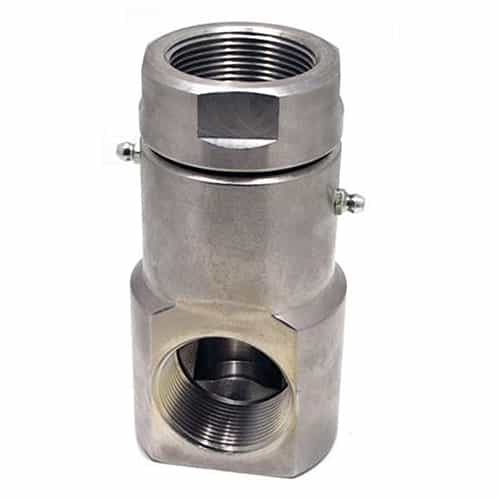

90 Degree Electroless Nickel Swivel

This swivel is designed with a right-angle change of path to provide free rotation on a 90° swivel. Engineered to reduce friction and kink risk. Base material and plating utilize carbon steel nickel plating for corrosion resistance with mildly corrosive chemicals. Feature Aflas¨ (Tetrafluoroethylene-Propylene Copolymer) that offers resistance to chemicals and is made for high temperature environments.

Specifications:

• Part Number: 9SS24FP150XFP150-Ni-AL
• Material: Electroless Nickel
• Seal: AFLAS
• Overall Length: 5.605"
• Dim. B: 4.375"
• Dim. DØ: 2.917"
• Wrench/Hex: 2.375"
• Port T1: 1-1/2-11-1/2 NPTF
• Stem T2: 1-1/2-11-1/2 NPTF
• SWG. Radius: 1.076"
• Max PSIG: 4000 PSIG
• Through Hole: 1.312

Features:

• Base Material and Plating:
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
• Seat Material:
  • (AL) Aflas¨ (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
• Super Swivels are not recommended for breathing air/oxygen or steam.
• All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure
• Any series stem will fit with the same series body
• 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path
• Reduce the complexity of hose lines providing minimal friction to allow free movement of hoses and piping
• 90° Super Swivels allow for sharp corners reducing the risk of kinks and flow restriction
• Ball bearing race design withstands heavy side loads preventing premature seal wear and leaks
• Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics
• No Kinks
• No Hose Twisting
