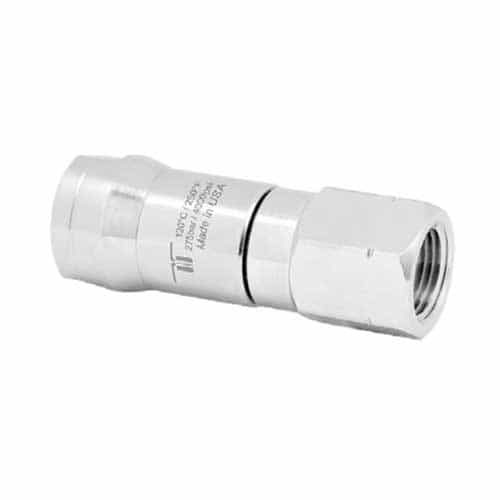

Mosmatic 30.654 DGS High-Pressure Nickel-Plated Brass Swivel - 3/8 F x 3/8 F

Brand:
Mfr. Model #:
30.654
KR Part #:
SWM30654
Weight:
0.29 lbs
Low Stock Warning
Add to Cart for Price
Brass construction nickel-plated swivel with 3/8" x 3/8" FNPT connections. 4000 PSI.



Technical Specifications

Inlet Port: 3/8 inch
Max PSI: 4000
Max Temperature: 250 degrees F
RPM: 30

Product Description

DGS Nickel-Plated Brass Straight Body Swivel

The Mosmatic 30.654 swivel is ideal for low and high pressure cleaning, hose connections, ceiling booms, and hydraulic systems. This commercial swivel is made with nickel-plated brass, has a 4000 PSI maximum pressure rating, and has 3/8" NPT female connections.

Specifications and Features:
  • 4000 PSI
  • 250 Degrees Fahrenheit maximum temperature
  • (2) 3/8" NPTF ports
  • 3/8" nominal width
  • Brass nickel-plated body
  • Maximum 30 RPM speed
  • Throughput Medium: 3-12 pH filtered 10 microns compressed air
  • 1x thrust ball bearing
  • 1x radial ball bearing
  • O-ring NBR inner part seal
  • Very low torque
  • Sealed stainless steel bearings
  • Maintenance free
  • Easy rotation at maximum pressure
