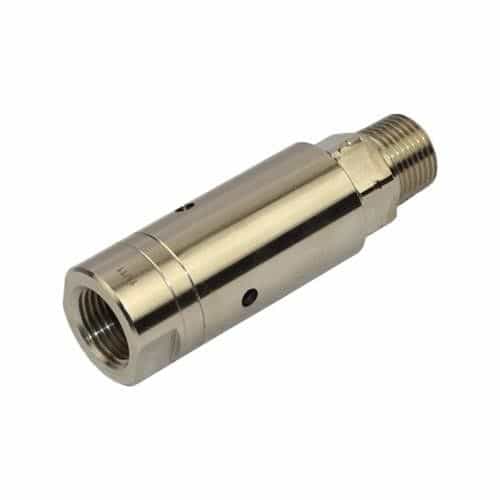

Triple Bearing Swivel

Mosmatic's 36.153 rotary union utilizes ceramic seals and a triple bearing system for high speed applications. Withstands a maximum pressure of 2500 PSI and reaches a maximum speed of 2000 RPM. Swivel is crafted using nickel plated brass. Used for high pressure cleaning technology, parts washers, tire cleaners and high rpm applications.

Specifications:


• Pressure: 2500 PSI (17 Mpa)

• Temperature: 40°F (at 2'000 rpm)

• RPM: Max. 2'000 RPM

• Body: DXL: Brass, Nickel Plated

• Inner Part: Stainless Steel

• Seal: Ceramic

• Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing

• Throughput: pH 3-12

• Medium: Filtered 10 Microns, Compressed Air (290 Psi)


Features:


• High Speed Triple Bearing System

• Seal Failure Warning, Through Weep Holes

• Stainless Steel

• Maintenance Free


Dimensions:


• G1: 3/8" NPTF

• G2: 3/8" NTPM

• NW: 1/4"

• SW1: 0.87

• SW2: 0.75

• L1: 3.14

• L2: 0.47

• D1: 0.98

• Weight: 6.8 oz


Applications:


• High Pressure Cleaning Technology

• Parts Washers

• Tire Cleaners

• High Rpm
