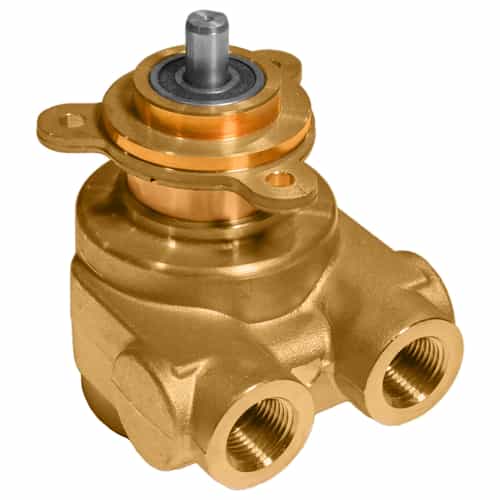

Fluid-O-Tech PA800F Brass Flange Mount Rotary Vane Pump - 4.2 GPM, 290 PSI, 1725 RPM
Brand:
Mfr. Model #:
PA800F
KR Part #:
FTPA800F
Weight:
4.39 lbs
Out of stock - Pre-Order Now!
A medium flow rotary vane pump designed with a carbon graphite pumping chamber and vanes. Equipped with NBR seals. It delivers a maximum flow rate of 4.2 GPM. Flange mounted.
Technical Specifications
Max GPM: 4.2
Max PSI: 290
RPM: 1725
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
PO 500-1000 Series Rotary Pump
The Fluid-O-Tech PA800F is a low flow rotary vane pump designed with a pumping chamber and vanes made with carbon graphite to provide pulsation free operation and a smooth flow. Seals are made with NSF approved NBR. Created with a brass housing and 1/2" NPT ports. This pump mounts to a 3 Bolt Flange with a "D" Shaft.
Specifications:
- Series: PO 500-1000 Series
- Flowrate: 4.2 GPM (250 GPH)
- Housing Material: Brass
- Bypass: Standard
- Seal Material: NBR (NSF Approved)
- Pumping Chamber: Carbon Graphite
- Speed Limit: 1725 RPM
- Max Pressure: 290 PSI
- Ports: 1/2” NPT
- Flange mount
Features:
- Self priming
- Quiet operation
- Pulsation free flow
- Long service life
- NFS and WRAS listed
Applications:
- Beverage vending machines
- Post mix drink dispensers
- Espresso coffee machines
- Water treatment
- Water dispensers
- Cooling systems
