Char Lynn H Series Hydraulic Motor

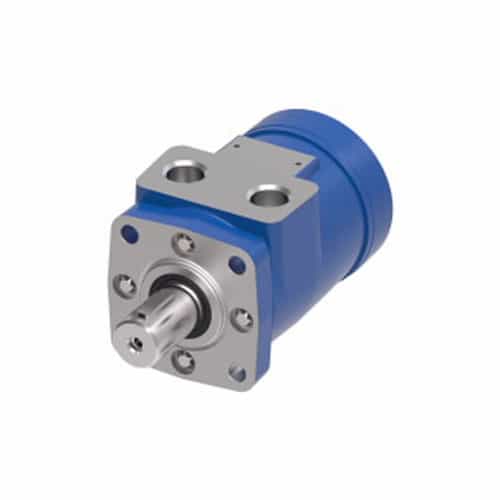

The Char-Lynn H-series motor is a medium duty performance motor with three moving parts- the gerotor-star, the drive, and the shaft. It features a 1" straight shaft, a .375" ring, and a 4-bolt flange mount. Thanks to its durable build quality, the hydraulic motor can operate comfortably in temperatures up to 180° F. Certain specifications exist in a range depending on usage such as the maximum flow rate displacement (15 GPM continuous and 18 intermittent) and maximum PSI (1800 continuous and 2400 intermittent).

The 760 RPM maximum of this hydraulic motor is measured under continuous use. It's important to note, intermittent describes instances where the pump is operated for no more than 10% of each minute. Overall, the Char-Lynn H-Series motor from Eaton is a well-known, well-performing option for car washes.

H Series Motor Specs:

• H-Series motor
• Medium duty performance
• Three moving parts: gerotor-star, drive, and shaft
• 4-bolt flange mount
• 0.375" ring
• Maximum operating temperature: 180° F
• Maximum flow rate: 15 GPM continuous; 18 GPM intermittent
• Maximum pressure: 1800 PSI continuous; 2400 PSI intermittent
• Maximum speed: 760 RPM (continuous)
• Maximum torque: 1044 inch pounds continuous; 1401 inch pounds intermittent
• 1/2-14 NPTF motor port
• 1/2-14 NPTF 8MP inlet and outlet ports
• 1" straight shaft

Please note: intermittent operation refers to running the pump no more than 10% of each minute.
