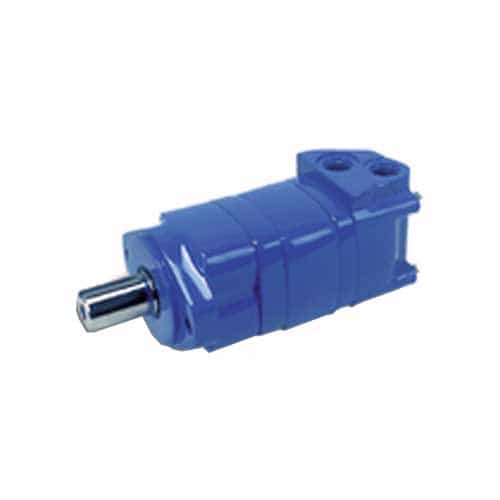

2000 Series Char-Lynn Motor

The 2000 Series Char-Lynn motor from Eaton has always been a cleverly engineered and sturdy motor. A integral cross-over relief valve is the latest innovation in this 2000 series motors. Going with a bearingless hydraulic geroler disc valve motor is perfect for swing motors, brush cutters, mowers, and harvesting equipment applications. It's a staple in various car washes already. A few notable specifications of this low speed motor includes a 20 GPM displacement, 385 RPM, a 3000 PSI maximum, and the use of a bearingless output shaft. It also offers some impressive features such as a three zone design which extends overall lifespan and affords true bi-directionality.

Dimensions: 4.69" L x 5.73" W x 4.69" H

Features:

• Three zone design for longer life and true bi-directionality.
• Bearings meet the highest industry standards
• Options to optimize performance in every application
• Integrated compact cross-over relief valve option
• Reliability and performance in tough application

Specifications:

• Torque: 625 lb-ft
• Max GPM: 20
• Max PSI: 3000
• Min Temperature: -30
• Max Temperature: 180
• Viscosity: 70 SUS
• Material: Cast Iron
• Staggered ports: .875-14 UNF-2B SAE O-Ring ports Size 4
• Intermittent Pressure: 260 bar
• Mount: Four-bolt flange, bearingless, with 4" pilot
