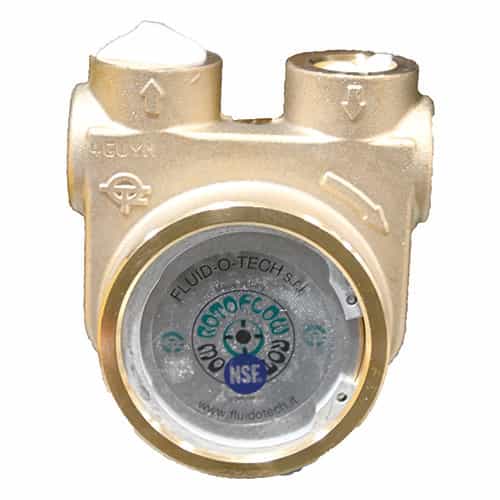

Fluid-O-Tech PA800 Clamp-Style Rotary Vane Pump - 264 GPH, 1/2in. Ports
Brand:
Mfr. Model #:
PA800
KR Part #:
FTPA800
Weight:
4.08 lbs
Availability:
3
Low Inventory Get It Today
This rotary vane pump with brass body utilizes a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. Clamp mount style. This pump does not include a by-pass.
Technical Specifications
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max Temperature: 158 degrees F
Max GPM: 4.4
RPM: 1725
Max PSI: 261
Product Description
PA 800 Series Rotary Vane Pump
This brass rotary vane pump is excellent for tire cleaner, presoak, spot-free RO water, and foam brush applications. They feature durable, dependable, three-bearing construction and Viton seals for added chemical resistance. Special internal materials used to eliminate metal to metal contact allowing for long life and quiet operation. Inlet and outlet ports are 1/2” NPT threaded. It can be connected to coupling direct motor with a metallic clamp.
Specifications:
- Max temp: 158 degrees F
- Max pressure: 260 PSI
- Max speed: 1725 RPM
- Inlet/outlet: 1/2" NPTF
- Max flow: 4.4 GPM
- Clamp mount
- No bypass
