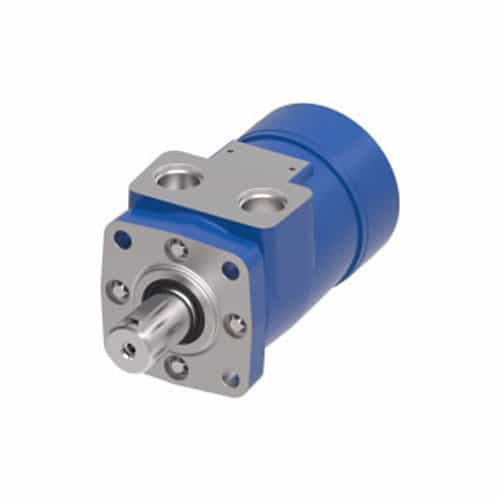

Char-Lynn 101-1012-009 H-Series Motor - 15 GPM, 353 RPM, 1650 PSI
Brand:
Mfr. Model #:
101-1012-009
KR Part #:
CL101-1012-009
Weight:
14.40 lbs
Availability:
4
Low Inventory Get It Today
Technical Specifications
Max GPM: 15
Inlet Port: 7/8 inch
Outlet Port: 7/8 inch
RPM: 353
Shaft Diameter: 1 inch
Max Temperature: 180 degrees F
Max PSI: 1800
Product Description
353 RPM Motor
This motor produces an optimized drive running angle using just three moving components- the gerotor star, drive, and shaft - to deliver high efficiency performance. Use the H series motor when powering car wash brushes, agricultural harvesters, food processing equipment, and more.
Details:
- H-Series motor
- Medium duty performance
- Three moving parts: gerotor-star, drive, and shaft
- 4-bolt flange mount
- Maximum operating temperature: 180° F
- Maximum flow rate: 15 GPM continuous; 20 GPM intermittent
- Maximum pressure: 1650 PSI continuous; 2250 PSI intermittent
- Maximum speed: 353 RPM (continuous)
- Maximum torque: 2059 inch pounds continuous; 2824 inch pounds intermittent
- 7/8-14 UNF-2B straight thread o-ring SAE motor port
- Straight thread o-ring SAE 7/8-14 UNF-2B ports size 10 inlet and outlet
- 1" straight shaft
- Char-Lynn item #101-1012-009
Please note: intermittent operation refers to running the pump no more than 10% of each minute.
