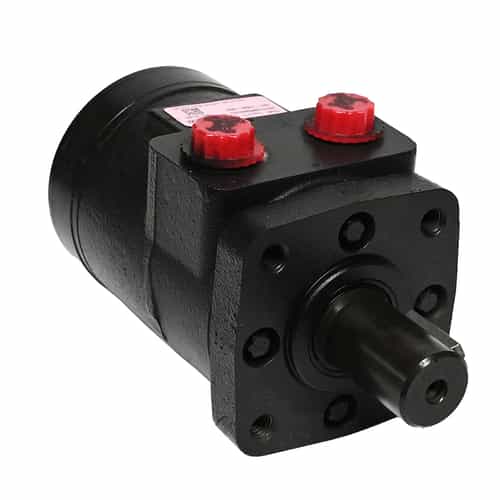

Char-Lynn 101-1754-009 H-Series Motor - 15 GPM, 953 RPM, 1800 PSI
Brand:
Mfr. Model #:
101-1754-009
KR Part #:
CL101-1754-009
Weight:
13.00 lbs
Out of stock - Pre-Order Now!
The Char-Lynn 101-1754-009 H-series gerotor motor is designed with state of the art technology! For use in powering equipment - car wash systems, food processing, agriculture, and more.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
Technical Specifications
Max GPM: 15
Inlet Port: 1/2 inch
Max PSI: 1800
Max Temperature: 180 degrees F
RPM: 953
Shaft Diameter: 1 inch
Type: Motor
Product Description
953 RPM Motor
This motor produces an optimized drive running angle using just three moving components- the gerotor star, drive, and shaft - to deliver high efficiency performance. Use the H series motor when powering car wash brushes, agricultural harvesters, food processing equipment, and more.
This is a clearance item with limited inventory. All sales final - no returns.
Specifications:
- H-Series motor
- Medium duty performance
- Three moving parts: gerotor-star, drive, and shaft
- 4-bolt flange mount
- Maximum operating temperature: 180° F
- Maximum flow rate: 15 GPM continuous; 17 GPM intermittent
- Maximum pressure: 1800 PSI continuous; 2400 PSI intermittent
- Maximum speed: 953 RPM (continuous)
- Maximum torque: 802 inch pounds continuous; 1076 inch pounds intermittent
- 1/2-14 NPTF motor port
- 1/2-14 NPTF Ports Size 8MP inlet and outlet
- 1" straight shaft
- Char-Lynn item #101-1754-009
Please note: intermittent operation refers to running the pump no more than 10% of each minute.
