Suttner 200008520 Float Valve - 140 PSI, 5 GPM, 1/2 Inch Inlet
Brand:
Mfr. Model #:
200008520
KR Part #:
SUTFV8
Weight:
0.45 lbs
In Stock
An adjustable float valve for holding tanks. Controls the fluid level. Handles a flow rate of 5 GPM.
Technical Specifications
Inlet Port: 1/2 inch
Max PSI: 140
Max GPM: 5
Max Temperature: 176 degrees F
Product Description

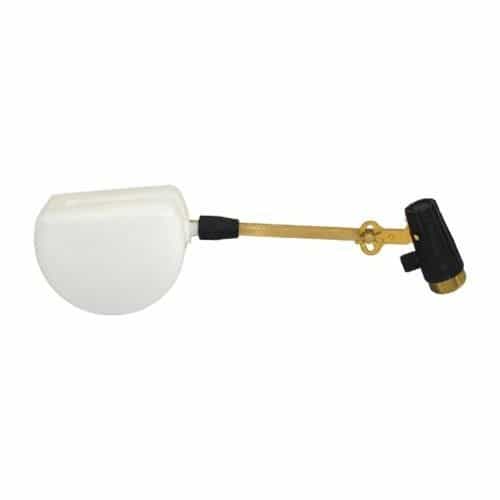

Adjustable Float Valve
The Suttner 200008520 is a float valve designed with an adjustable arm so you can set the water level to fit your holding tank's requirements. It is used to control the water level in holding tanks for fluids at your car wash. When fluid drops below the set level, the valve opens to allow in more fluid. It tolerates a maximum pressure of 140 PSI and flow rate of 5 GPM.Specifications:
- Pressure: 140 PSI
- Temperature: 176° F
- Flow Rate: 5 GPM
- Inlet: 1/2"
- Used to regulate the maximum water level in a float tank
- When the maximum water level drops the float valve opens
- Valve housing and connection are corrosion resistant material, brass and plastics
- Adjustable float
