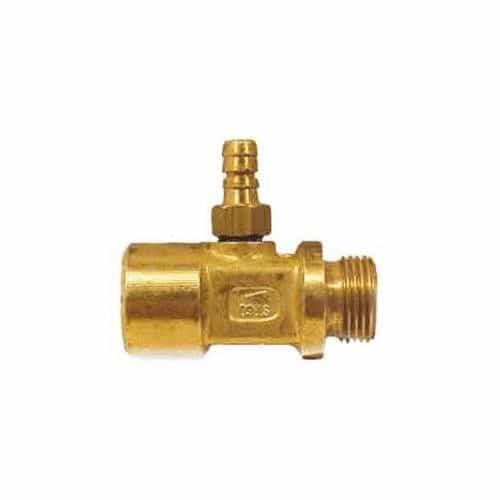

Suttner 200060620 Brass Downstream Chemical Injector - 3600 PSI, 3.35 - 5.00 GPM
Brand:
Mfr. Model #:
200060620
KR Part #:
SUT60-2.4
Weight:
0.30 lbs
Usually Ships in 2 Weeks
A chemical injector with 3/8" MPT x 3/8" FPT connections. Operates using the pressure drop cause by using a larger orifice spray nozzle. Injection rate is set at 10:1.
Technical Specifications
Max PSI: 3600
Min GPM: 3.35
Max GPM: 5
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Orifice: 2.4 millimeters
Product Description
3/8" Chemical Injector
The Suttner 200060620 is a downstream chemical injector that relies on a pressure drop created by using a spray nozzle with a larger orifice. Withstands a maximum pressure of 3600 PSI and a flow rate of 3.35 - 5.00 GPM. Injection rate is fixed to provide accurate dilutions. Housing is made with brass and the spring and ball are both made with stainless steel. Inlet measures 3/8" MPT x 3/8" FPT.Specifications:
- Pressure: 3600 PSI
- Temperature: 140° F
- Inlet: 3/8" MPT
- Outlet: 3/8" FPT
- Chemical Connection: Hose Barb
- Flow Rate: 3.35 - 5.00 GPM
- Orifice: 2.4
- Siphon Rate: Approximately 10:1
- Housing: Brass
- Spring: Stainless Steel
- Ball: Stainless Steel
