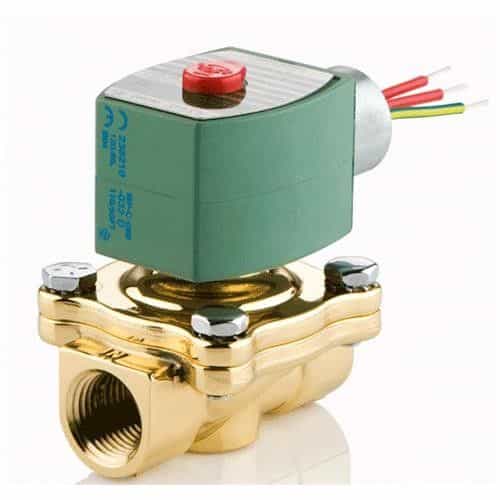

Asco 8210G002HW 120/60 Brass Normally Closed 2-Way Pilot Operated Hot Water Solenoid Valve - 1/2 Inch, 125 PSI, 120 VAC
Brand:
Mfr. Model #:
8210G002HW 120/60
KR Part #:
SA221
Weight:
2.00 lbs
Usually Ships in 2 Weeks
Normally open solenoid valve engineered for use with hot water. Compatible with 1/2-inch piping. Coil accepts 120 VAC.
Technical Specifications
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max PSI: 125 PSI
Voltage AC: 120
Min PSI: 5
Max Temperature: 210 degrees F
Product Description
Hot Water Solenoid Valve
Asco's 8210G002HW 120/60 Solenoid Valve is safe to use with hot water. Valve inlet and outlet fit 1/2-inch piping with a body that is constructed with brass. This valve tolerates fluid temperatures up to 210 degrees Fahrenheit. Valve is designed with a 2-way function and a normally closed design.
Specifications:
- Pipe Size: 1/2"
- Type: 2 Way
- Mode: Normally Closed
- Body Material: Brass
- Media: Hot Water
- Voltage: 120V AC
- Coil Insulation Class: F
- Orifice Diameter: 5/8 In
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- Max. Fluid Temp. Hot Water: 210 Degrees F
- Min. Operating Pressure Differential: 5 PSI
- Max. Operating Pressure Differential Hot Water: 125 PSI
- Coil Enclosure: Watertight No Junction Box
- Max. Fluid Temp. Steam: Not Rated
- Electrical Connections: 1/2 in Conduit w/18 in Leads
- Watts: 6.1 W
- Hz: 60/50
Dimensions:
- Overall Length: 2 3/4 In
- Overall Width: 2 9/32 In
- Overall Height: 3 3/8 In
- Center Line Pipe Center Size: 2 13/16 In
