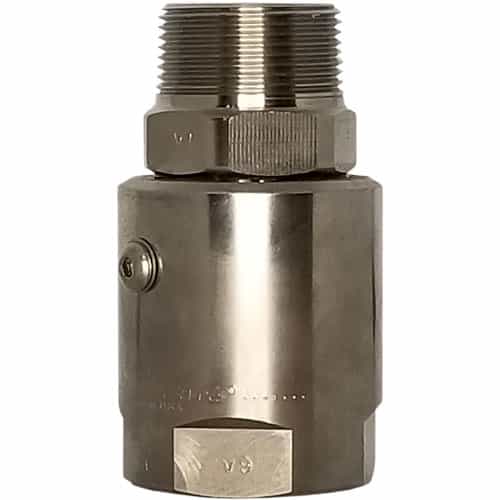

Super Swivels 1254 Electroless Nickel Straight Swivel - 1.25 Inch NPTM X 1.25 Inch NPTF
Brand:
Mfr. Model #:
1254
KR Part #:
SWS1254
Weight:
2.47 lbs
Availability:
3
Low Inventory Get It Today
A swivel with 1 1/4" NPTM and 1 1/4" NPTF connections. Constructed with electroless nickel and an AFLAS seal. Tolerates a maximum pressure of 4000 PSI.
Technical Specifications
Max PSI: 4000
Outlet Port: 1 1/4 inch
Inlet Port: 1 1/4 inch
Product Description
1 1/4" - Pass Through Swivel
The Super Swivels 1254 is designed to eliminate kinks and twisting while being able to fit in tight spaces. Made with electroless nickel to provide resistance against abrasion and corrosion. It's seal is made with AFLAS that tolerates high temperatures and is resistant to many chemicals. Connections measure 1 1/4" NPTM and 1 1/4" NPTF threading.Specifications:
- Material: Electroless Nickel
- Design: Straight
- Seal: AFLAS
- Overall Length: 4.190"
- Dimension B: 2.685"
- Stem Thread: 1-1/4-11-1/2 NPTM
- Body Thread: 1-1/4-11-1/2 NPTF
- Hex: 1.750"
- Diameter: 2.357"
- Wrench: 2.125"
- Maximum Pressure: 4000 PSI
- Through Hole: 1.181"
- Minimal friction allows free movement of hoses and piping in fluid conducting power systems.
- Compact design fits in tight areas.
- One piece barrel and stem with integrated ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
- Pass-through inline design is the most standard configuration.
- Connects directly to hose lines without adapters reducing overall costs of hydraulics.
- No Kinks - No Hose Twisting.
- (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) offers better resistance to many chemicals. Tolerates high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
