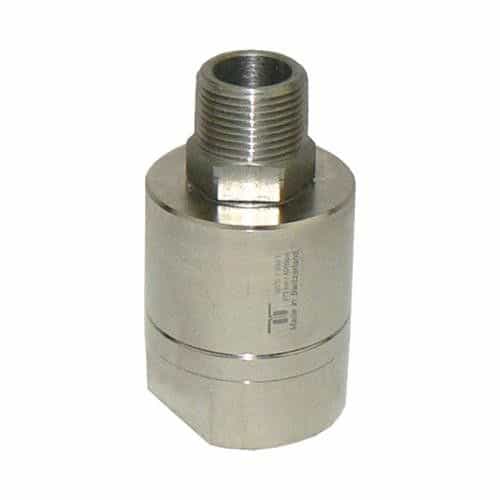

High Flow Swivel

This rotary union is designed for maintenance free operation. Swivel is crafted using corrosion resistant nickel-plated brass. Preforms well in high flow low rpm automatic car wash systems and high-pressure hose reel applications.

Specifications:

• Pressure: 4000 PSI (27.5 MPa)

• Temperature: 250°F

• Max RPM: 30 RPM

• Body: Nickel Plated Brass

• Inner Part: Stainless Steel

• Seal: O-ring NBR (optional: EPDM or FKM

• Bearing: 1x Thrust Ball Bearing, 1x Radial Ball Bearing

• Throughput: pH 3-12

• Medium: Filtered 10 Microns, Compressed Air (290 PSI)


Features:

• Maintenance free

• Sealed stainless steel bearings

• High flow

• Applications:

• High Flow

• Low Rpm

• Automatic Car Wash Systems

• High Pressure Hose Reels


Dimensions:

• G1 (F) 3/4" NPTF

• G2 (M) 3/4" NPTM

• NW 3/4"

• SW1 1.06

• SW2 1.57

• L1 3.46

• L2 2.38

• L3 0.63

• D1 1.97

• Weight 27.8 oz
