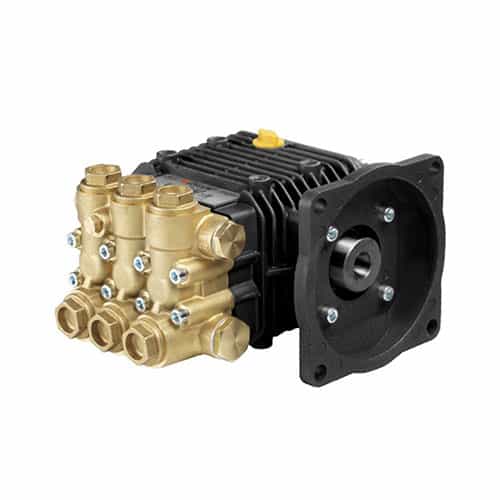

Comet Pumps 6303.0509.00 Brass Triplex Plunger Pump - 3.0 GPM, 2000 PSI, 4.0 HP, 3400 RPM
Brand:
Mfr. Model #:
6303.0509.00
KR Part #:
CP63030509
Weight:
13.00 lbs
Usually Ships in 2 Weeks
Used in high pressure industrial applications. Brass head houses hydraulic functions. Made for belt drive, gearbox and flex coupler applications.
Technical Specifications
Max GPM: 3.0
Max PSI: 2000
Horsepower: 4.0
RPM: 3400
Inlet Port: 1/2 inch
Shaft Diameter: 15.875 millimeter
Outlet Port: 3/8 inch
Product Description
Positive Displacement Pump
This Comet LWD Series triplex plunger pump is made for use in high pressure industrial applications. Durable brass head is designed to house the pump's hydraulic function. Utilizes industrial grade ceramic plungers that are resistant to abrasions and heat. Engineered for belt drive, gearbox and flex couplers.
Specifications:
- Flow Rate: 3.0 GPM
- Pressure: 2000 PSI
- Power: 4.0 HP
- Shaft Size (Diameter):Ø 5/8"
- Shaft Style: Solid Shaft
- RPM: 3400
- Inlet Connection: 1/2" FNPT
- Outlet Connection: 3/8" FNPT
- Pump Head: Brass
- Oil Capacity: 11 fl oz
- Weight: 13.4 lbs
Features:
- Forged Bronze Connecting Rods with Lifetime Warranty
- Hardened Stainless Steel Piston Guides
- High Efficiency Stainless Steel Check Valves
- Abrasion Proof, Heat Resistant, Industrial Ceramic Plungers
- High Quality Buna-Textile Double-Sealing V-Packings
- Die-Cast, Anodized Aluminum Crankshaft-Fin Design for Optimal Operating Temperature
- High Quality Oversized Ball Bearings
- Optimal Oil Bath for High-Speed Operation
- Designed for Belt Drive, Gearbox or Flex Couplers
