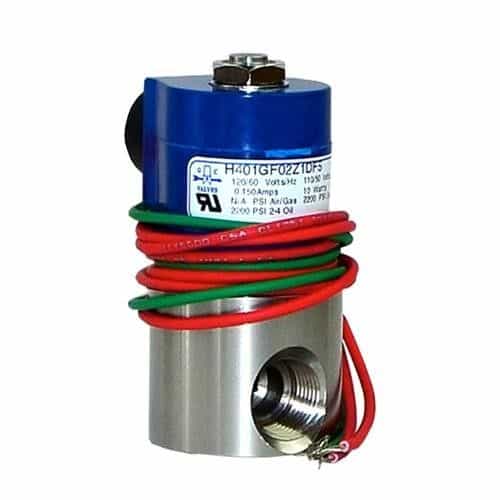

G.C. Valves H401GF02Z1DF5 Stainless Steel High Pressure Normally Closed Solenoid Valve, 1/2 in., 120 VAC, Conduit Housing
Brand:
Mfr. Model #:
H401GF02Z1DF5
KR Part #:
GC341
Weight:
1.68 lbs
Availability:
1
Normally closed high pressure stainless steel 2-way piloted diaphragm solenoid valve. PTFE seals, copper shading ring. 120/50hz required for power. NEMA 4/4X fully encapsulated conduit housing, 24" lead wires, 1/2" conduit hub.
Technical Specifications
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Orifice: 3/8 inch
Voltage AC: 120
Max PSI: 2200
Max Temperature: 230
Product Description
Series 40 High-Pressure Normally Closed 2-Way Solenoid Valve
The G.C. Valves H401GF24Z1DF5 valve is a normally closed 1/2" solenoid valve featuring a stainless steel body, Viton seals, and copper shading ring for reliability and durability. Able to withstand temperatures up to 230 degrees Fahrenheit and pressures up to 2200 PSI, this valve is a dependable option for use in your car wash! Please note that this valve requires a 120/50hz electrical connection. NEMA 4/4X fully encapsulated conduit housing, 24" lead wires, 1/2" conduit hub.
- Voltage: 24 VAC
- Valve Size: 1/2" NPT
- Orifice Size: 3/8"
- Max Pressure Diff: 2200 PSI
- Max Temperature: 230 F
- Class F Coil
