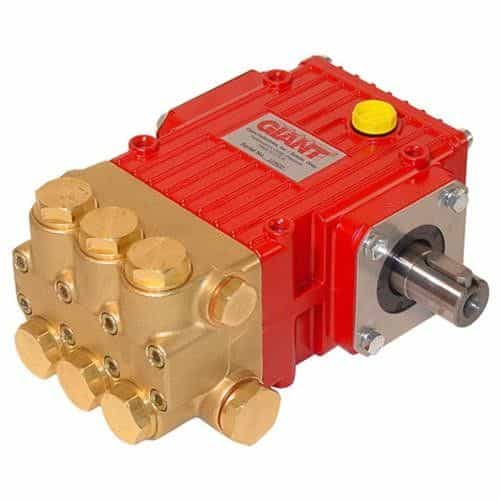

Giant P321R Pump, Right Shaft, 3.8 GPM, 3500 PSI, 3450 RPM
Brand:
Mfr. Model #:
P321R
KR Part #:
PUP321R
Weight:
16.00 lbs
Availability:
1
Low Inventory Get It Today
This is a triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications. Made in the USA.
Technical Specifications
RPM: 3450
Crankcase Capacity: 17 ounce
Inlet Port: 1/2 inch
Max Temperature: 160 degrees F
Stroke: 14.22 millimeter
Shaft Diameter: 23.88 millimeter
Max GPM: 3.8
Product Description
3.8 GPM, 3450 RPM
This P321R pump features an aluminum crankcase with sight glass and a vented dipstick. It has a forged, ground, and polished crankshaft. Other features include: bronze connecting rods, hardened stainless steel plunger bases, solid ceramic plungers, nitrile seals, and stainless steel valves.
Specifications:
- Nominal Pressure: 3200 PSI
- Intermittent Pressure: 3500 PSI
- Maximum inlet pressure: 145 PSI
- Maximum temperature: 160 degrees Fahrenheit
- Plunger diameter: 0.47"
- Stroke: 0.56"
- Crankshaft diameter: 0.94"
- Crankshaft rotation: top of pulley towards manifold
- Right shaft
- Inlet ports: (2) 1/2" BSP
- Discharge ports: (2) 3/8" BSP
- Crankcase oil capacity (short): 14.2 fl. oz.
- Crankcase oil capacity (extended): 17.0 fl. oz.
Materials:
- Manifold: forged brass
- Plungers: solid ceramic oxide
- Valves: high grade stainless steel
- Seals: nitrile with fabric reinforcing
- Gear end: aluminum die-cast
