Standard Duty Flange with Set Screw Lock

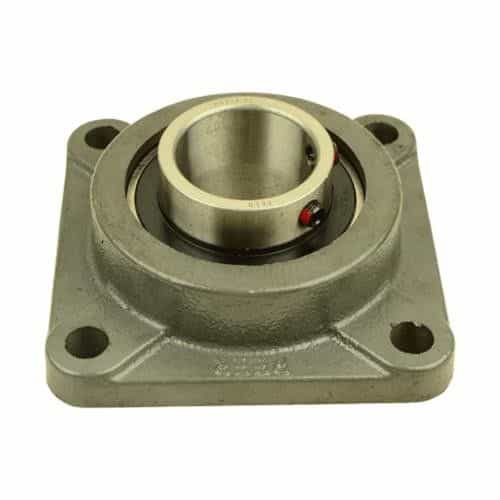

The UCF210-31 Four Bolt Flange is a standard duty flange from IPTCI. This bolt flange is made with quality cast iron and supports 1 15/16" diameter shafts used in automatic car washes. It has a set screw lock and a wide inner race bearing.

• For shafts with a 1 15/16" diameter
• Cast iron housing
• Set screw lock
• Wide inner race bearing
• Bearing Number: UC210-31
• Housing Number: F210
• Bolt Used: 9/16"
• Weight: 5.6 lbs.


Drawing Dimensions:

• Dimension A: 5 5/8"

• Dimension Bi: 2.0315"

• Dimension d: 1 15/16" shaft diameter

• Dimension E: 4 3/8"

• Dimension G: 5/8"

• Dimension I: 55/64"

• Dimension L: 1 9/16"

• Dimension M: 1.2835"

• Dimension N: .748"

• Dimension S: 5/8"

• Dimension Z: 2 5/32"
