5/8" Bore Cast Iron Flange Unit

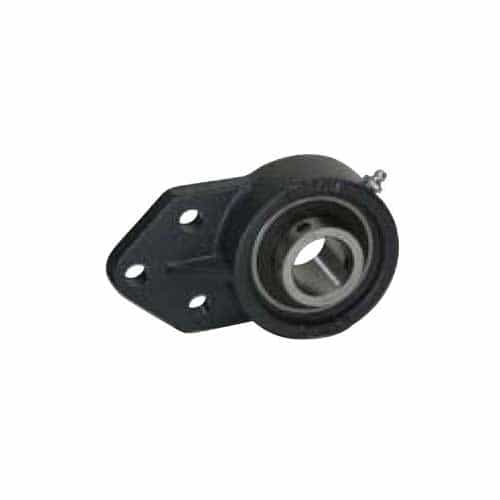

The UCFB202-10 Flange Bracket is a standard duty 3-bolt flange from IPTCI. This bolt flange is made with quality cast iron and is used to mount and support 5/8" diameter shafts used in automatic car washes. It has a set screw lock and a wide inner race bearing.

• Use with 5/8" diameter shafts

• Cast iron housing

• Set screw lock

• B-type seals

• Wide inner race bearing

• Weight: 1.5 lbs.

• Bolt Used: 5/16"

• Housing Number: FB204
• Bearing Number: UC202-10

Drawing Dimensions:

• Dimension B: 2 1/2"

• Dimension Bi: 1.2205

• Dimension D: 2 3/8"

• Dimension d: 5/8" shaft diameter

• Dimension E: 1 1/2"

• Dimension G: 5 1/6"

• Dimension H:1 11/16"

• Dimension I: 5/8"

• Dimension J: 7/8"

• Dimension L: 1"

• Dimension M: .7205"

• Dimension N: 1/2"

• Dimension W: 4 1/4"
