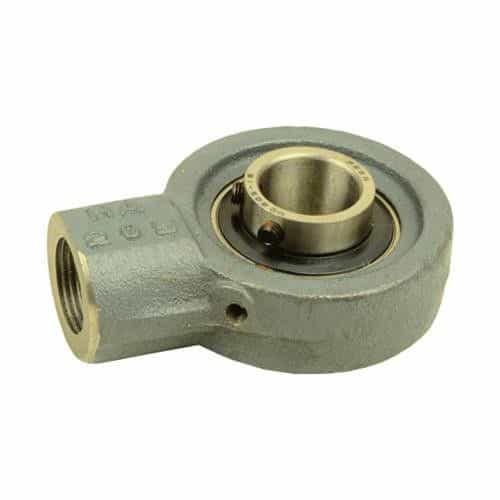

IPTCI UCHA205-16 Standard Duty Cast Iron Hanger Bearing for 1 in. Shafts
Brand:
Mfr. Model #:
UCHA205-16
KR Part #:
UCHA20516
Weight:
1.90 lbs
Usually Ships in 2 Weeks
Cast iron hanger bearing bored for 1" drive shafts. Standard duty with set screw lock. Wide inner race bearing and B-type seals.
Conveyor & Tunnel
Technical Specifications
Bore: 1 inch
Product Description
1" Bore Standard Duty Hanging Bearing
The IPTCI UCHA205-16 Bearing is a standard duty hanger style bearing with a cast iron housing. Use this bearing to support automatic car wash conveyor shafts with a 1" diameter.
Specifications:
- Used with 1" shafts
- Cast iron housing
- Set screw lock
- B-type seals
- Wide inner race bearing
- Bearing Number: UC205-16
- Housing Number: HA205
- Weight: 1.9 lbs.
Drawing Dimensions:
- Dimension A: 3 1/16"
- Dimension Bi: 1.3386"
- Dimension C: 0"
- Dimension D: 3/4"
- Dimension d: 1" shaft diameter
- Dimension H: 2 33/64"
- Dimension K: PF 3/4-14
- Dimension L: 1 9/16"
- Dimension M: .7756"
- Dimension N: .5630"
