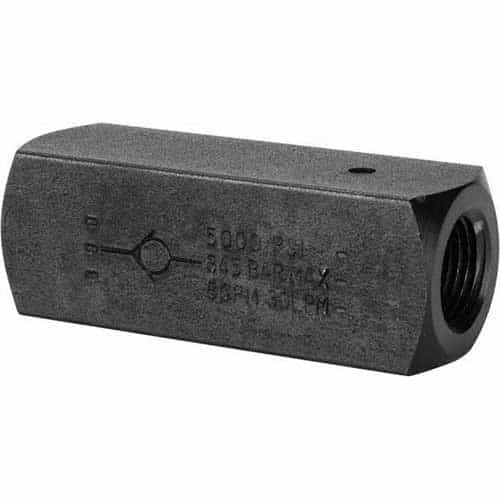

Parker C600S Colorflow In-Line Steel Check Valve - 5000 PSI, 8 GPM, 3/8 NPTF
Brand:
Mfr. Model #:
C600S
KR Part #:
CV0C600S
Weight:
0.25 lbs
Usually Ships in 2 Weeks
This steel hydraulic check valve contains a spring loaded poppet that provides reliable backflow checking and postive flow to hydraulic devices. Good for pressures up to 5000 PSI.
Technical Specifications
Max PSI: 5000
Max GPM: 8
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Min Temperature: -15 degrees F
Max Temperature: 400 degrees F
Max Temperature: 400 degrees F
Product Description
Check Valve - 3/8 Inch Female Ports
Parker's C-Series hydraulic control valves are designed for quick and reliable backflow prevention in hydraulic and pneumatic systems. Fully guided poppets provide smoother, more robust operating service. The steel C Series check valve comes standard with a black oxide finish.Specifications:
- Max Pressure: 5000 PSI
- Max Temp: 400 degrees F
- Max Flow: 8 GPM
- Inlet Port: 3/8" NPTF
- Outlet Port: 3/8" NPTF
- Max Cracking Pressure: 5 PSI
- Material: Steel, Black Oxide Finish
- Seals: Fluorocarbon
- Accumulator circuits
- Tank line backpressure
- Power units
- Tank line backpressure
- High low pump circuits
