100 Series In-Line Solenoid Valve - 3 Way

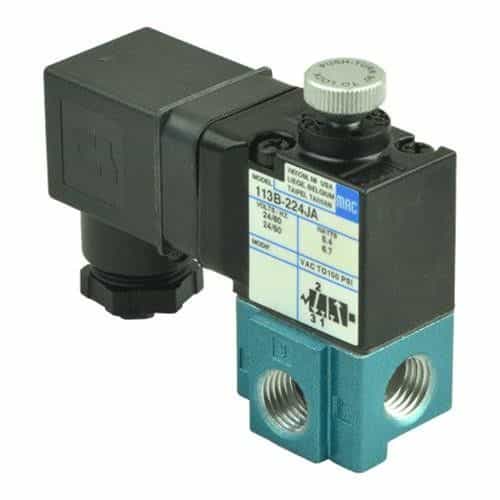

The Mac Valves 113B-224JA is a 3 way solenoid valve equipped with square connectors. Ports measure 1/4 Inch NPTF. Compatible with 24/60 volt DC electrical connections. Made with a balanced poppet that is immune to pressure variations.


Specifications:

• Port: 1/4” NPTF
• DIN: 1/2"
• Fluid: Compressed air, vacuum, inert gases
• Pressure range: Vacuum to 150 PSI
• Lubrication: Not required, if used select a medium aniline point lubricant (between 180°F and 210°F)
• Filtration: 40 µ
• Temperature range: 0°F to 140°F (-18°C to 60°C)
• Flow (at 6 bar, ∆P=1bar): 0.18 Cv
• Coil: General purpose class A, continuous duty, encapsulated
• Voltage range: -15% to +10% of nominal voltage
• Protection: Consult factory
• Power: Inrush: 14.8 VA Holding : 10.9 VA = 1 to 17 W
• Response times: 24/60 DC Energize : 7 ms De-energize : 2 ms

Features:

• Balanced poppet, immune to variations of
• pressure.
• Short stroke with high flow.
• The patented solenoid develops high shifting
• forces.
• Powerful return spring.
• Manual operator standard on all valves.
