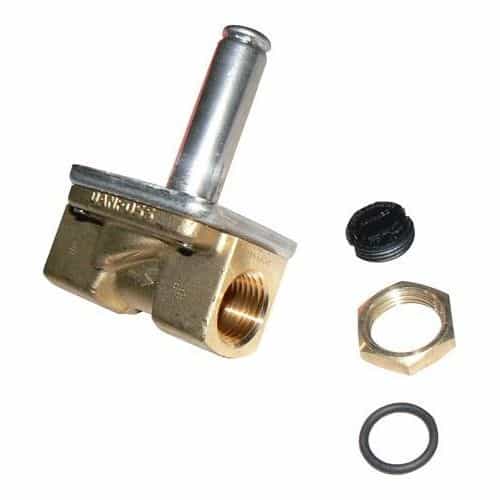

Danfoss 032U6521 EV220B Type 2-Way Normally Closed Brass Solenoid, 1/2 NPT
Brand:
Mfr. Model #:
032U6521
KR Part #:
DF08LC
Weight:
0.80 lbs
Availability:
2
Low Inventory Get It Today
Brass body solenoid valve with two-way function and single-flow direction. 1/2" NPT ports.
Technical Specifications
Inlet Port: 1/2 inch
Max PSI: 142
Max Temperature: 194 degrees F
Product Description
NC Two-Way Solenoid Valve Without Coil - 350 PSI
The Danfoss 032U6521 solenoid valve allows you to operate a variety of water, oil, and compressed air services at your car wash. This brass two-way solenoid is a normally closed valve with single flow direction and 3/8" NPT connection.
Specifications:
- Function: Normally closed
- Number of Ways: 2/2-way solenoid
- Direction: Single flow
- Temperature Range: 14-194° Fahrenheit
- Connection: 3/8" NPT
- Maximum Working Pressure: 142 PSIG
- Maximum Differential Pressure: 142 PSI
- Minimum Differential Pressure: 4.351 PSI
- Type: EV220B
- Orifice Size: 1/2" (12 mm)
- Actuator: B
- Actuator Size: .53" (13.5 mm)
- Seal Material: EPDM - Recommended for hot water and drinking water applications
- Operation: Servo-operated diaphragm
- Cv Value: 2.9 gallon/minute
- Kv Value: 2.5 m3/h
- Maximum Media Viscosity: 50 cSt
- Fluid Group: I
EAN:
- 5702423031429
