Normally Open Sensor

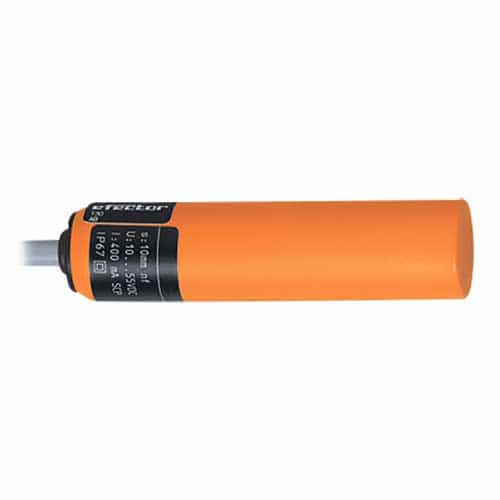

The IA5121 is made with a housing made of PBT thermoplastic that withstands harsh environments and chemicals found in car washes. Compatible with 10- 55 Volt DC power. Operate utilizing two-wire technology. Reaches a maximum sensing range of 10 mm.

Product Characteristics:

• Electrical Design: PNP/NPN
• Output Function: Normally Open
• Sensing Range [mm]: 10
• Housing: Tubular
• Dimensions [mm]:Ø 20 / L = 80

Electrical Data:

• Operating Voltage [V]: 10-55 DC
• Protection Class: II
• Reverse Polarity Protection: Yes

Outputs:

• Electrical Design: PNP/NPN
• Output Function: Normally Open
• Max. Voltage Drop Switching Output DC [V]: 4.6
• Minimum Load Current [Ma]: 4
• Max. Leakage Current [mA]: 0.8
• Permanent Current Rating of Switching Output DC [mA]: 400
• Switching Frequency DC [Hz]: 500
• Short-Circuit Protection: Yes
• Type of Short-Circuit Protection: Yes (Non-Latching)
• Overload Protection: Yes

Monitoring Range:

• Sensing Range [mm]: 10
• Real Sensing Range Sr [mm]: 10 ± 10 %
• Operating Distance [mm]: 0...8.1

Accuracy / Deviations:

• Correction Factor: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch-point drift [% of Sr]: -10...10

Operating Conditions:

• Ambient Temperature [°C]: -25...80
• Protection: IP 67

Tests / Approvals:

• EMC: EN 60947-5-2
• EN 55011: Class B
• MTTF [years]: 1862

Mechanical Data:

• Weight [g]: 340
• Housing: Tubular
• Mounting: Non-Flush Mountable
• Dimensions [mm]:Ø 20 / L = 80
• Material: PBT
• Displays / Operating elements

Display:

• Switching status: 1 x LED, red

Accessories:

• Items Supplied
• Mounting Clamp: 1

Remarks:

• Pack Quantity 1 Pcs.
• Electrical Connection:
• Connection: Cable: 6 m, PVC; 2 x 0.5 mm_

Features:

• Smooth plastic housing to protect against deposits
• PBT housing resistant against wide range of chemicals
• Two-wire technology
• For applications with aggressive media
• With long PVC cable
