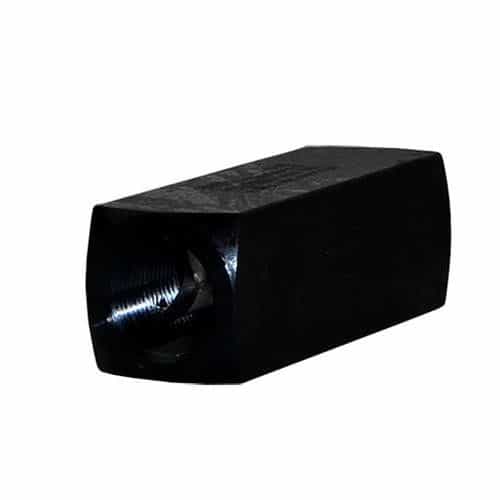

One-Way Valve

When pressure reaches the cracking level of 5 PSI, the valve will open. The valve will close when the pressure falls under the cracking level. Allows free flow of fluids in one direction with a reliable shut-off in the opposite direction. Valve is manufactured using steel with a black oxide finish for increased corrosion resistance. Delivers a maximum flow rate of 40 GPM and withstands a maximum pressure of 3000 PSI.

Specifications:

• Maximum Flow Rate (GPM):40

• Valve Body Material: Steel

• Cracking Pressure (psi): 5

• Seal Material: N/A

• Connection Type: Female - Female

• Thread Type: NPT

• Poppet Style: Metal Poppet

• Port Size: 1"

• Maximum Flow Rate: 151 L/min

• Maximum Operating Pressure: 3000 psi

• Maximum Operating Temperature: 400 °F, 205 °C

• Minimum Operating Temperature: -40 °F, -40 °C

• Mounting Type: In-line

• Media: Hydraulic

Features:

• Soft seat construction for low leakage

• Pressures up to 3,000 PSI

• Made with steel

• Port sizes 1"


Applications:

• Accumulator circuits

• Tank line backpressure

• Power units

• Tank line backpressure

• High low pump circuits

• Power Gen

• Machine Tools

• Factory automation

• Vehicle Assembly Facilities

• Molding

• Miscellaneous Industrial

• Miscellaneous Manufacturing

• Oil & Gas

• Machine tools

• Material Handling

• Mining

• Marine
