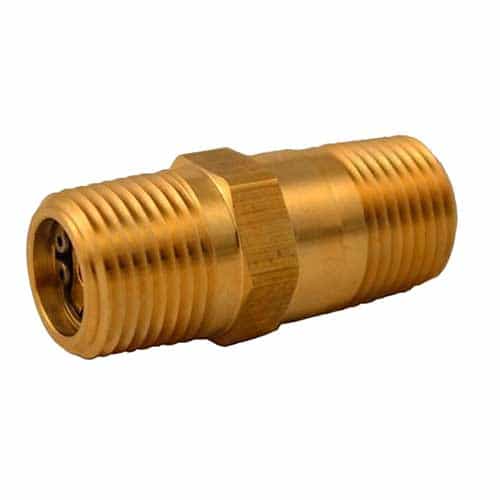

Circle Valves 2232-B-1MM Brass Check Valve - 1/8 Inch M X M NPT, 800 PSI
Brand:
Mfr. Model #:
2232-B-1MM
KR Part #:
CVC2230
Weight:
0.04 lbs
Out of stock - Pre-Order Now!
A brass check from Circle Valve's 2200 Series. Single piece design eliminates maintenance and provides dependability. Tolerates a maximum temperature of 400° Fahrenheit.
Technical Specifications
Inlet Port: 1/8 inch
Max PSI: 800
Max Temperature: 400 degrees F
Product Description
2200 Series Check Valve
The Circle Valves 2232-B-1MM is a check valve for the 2200 Series valves. Designed as a single piece for dependable operation and to eliminate maintenance. Handles a medium flow of fluid and handles a maximum pressure of 800 PSI. Features a brass construction with a Viton O-ring and 1/8-inch connections.
Kit Includes:
- Series: 2200
- Body Material: Brass
- O-Ring Material: Viton¨
- Connection Size: 1/8 in
- End Connections (Inlet and Outlet): Male NPT
- Operating Pressure: 0 to 800 psig (0 to 55 BAR)
- Cracking Pressure: 2 psig
- Available Cracking Pressures: 0.1 to 7 psi
- Operating Temperature: -20 to 400 °F
- Flow Coefficient (Cv): 0.26
- Spring Material: 302 Stainless Steel
- Proof Pressure: 1200 PSIG (83 BAR)
- Max. Allowable Pressure Drop (Air): 5 PSID
- Max. Allowable Pressure Drop (Oil): 10 PSID
- Dim. A: 1.3 in
- Dim. B: 0.39 in
- Dim. C: 0.39 in
- Dim. D: 1/2 in
- Weight: .04 lbs
