Mosmatic 30.052 DGS High-Pressure Nickel-Plated Brass Swivel - 1/4 F x 1/4 F

Brand:
Mfr. Model #:
30.052
KR Part #:
SWM30052
Weight:
0.24 lbs
Low Stock Warning
Add to Cart for Price
Brass construction nickel-plated swivel with 1/4" x 1/4" FNPT connections. 4000 PSI.



Technical Specifications

Max PSI: 4000
Max Temperature: 250 degrees F
Inlet Port: 1/4 inch
RPM: 30

Product Description

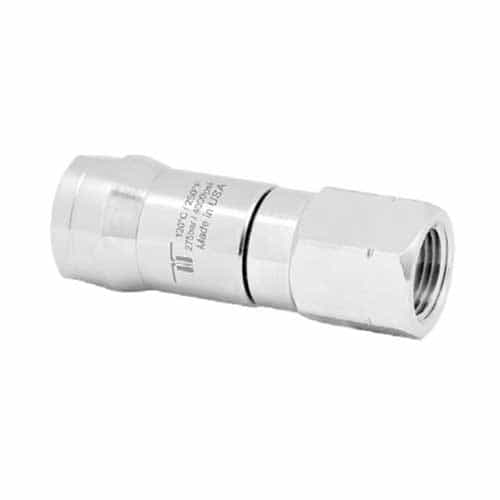

DGS Nickel-Plated Brass Body Straight Swivel

The Mosmatic 30.052 swivel is ideal for low and high pressure cleaning, hose connections, ceiling booms, and hydraulic systems. This commercial swivel is made with nickel-plated brass, has a 4000 PSI maximum pressure rating, and has 1/4" NPT female connections.

Specifications and Features:

  • 4000 PSI
  • 250° Fahrenheit maximum temperature
  • (2) 1/4" NPTF ports
  • 1/4" nominal width
  • Brass nickel-plated body
  • Maximum 30 RPM speed
  • Throughput Medium: 3-12 pH filtered 10 microns compressed air
  • 1x thrust ball bearing
  • 1x radial ball bearing
  • O-ring NBR inner part seal
  • Very low torque
  • Sealed stainless steel bearings
  • Maintenance free
  • Easy rotation at maximum pressure
