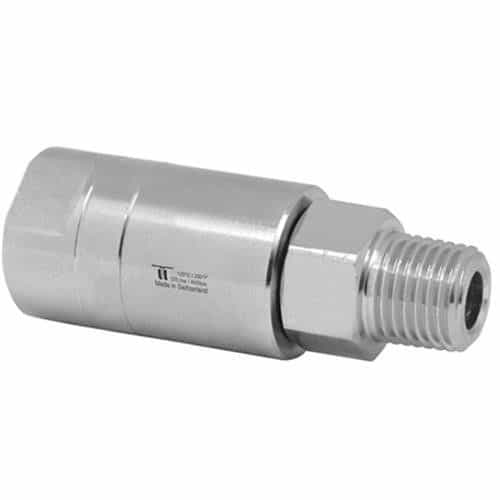

Mosmatic 31.051 Nickel Plated Brass DGL Rotary Union Swivel - 1/4 Inch NPT F x M, 4000 PSI

Brand:
Mfr. Model #:
31.051
KR Part #:
SWM31051
Weight:
0.50 lbs
Usually Ships in 2 Weeks
Add to Cart for Price
A rotary union swivel constructed with nickel plated brass. Resistant to corrosion and requires minimal maintenance. Handles a maximum pressure of 4000 PSI and a maximum speed of 1000 RPM.



Technical Specifications

Max PSI: 4000
RPM: 1000
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Max Temperature: 250 degrees F
Min Temperature: 90 degrees F

Product Description

1/4" - Triple Bearing Rotary Union

Mosmatic DGL 31.051 is rotary union made with nickel plated brass to provide resistance to corrosion. Utilizes a triple bearing system to handles high-speed applications at a maximum speed of 1000 RPM. Designed to endure a maximum pressure of 4000 PSI. Used in high pressure cleaning technology, parts washers, tire cleaners and applications involving self-rotating machinery.

Specifications:

  • Pressure: 4000 PSI (27.5 MPa)
  • Temperature: 90°F (at 1'000 rpm), 250°F (at 30 rpm)
  • RPM: max. 1000 RPM
  • Body: DGL: Brass, Nickel Plated
  • Inner part: Stainless Steel
  • Seal: O-ring NBR (optional: EPDM or FKM)
  • Bearing: 2x Radial Ball Bearings, 2x Thrust Ball Bearing
  • Throughput: pH 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 PSI)

Features:

  • High Speed Triple Bearing System
  • Corrosion Resistant
  • Solid Construction
  • Long Service Life
  • Maintenance Free

Applications:

  • Thrust And Radial Forces
  • High Flow
  • Automatic Car Wash Systems
  • High Pressure Hose Reels

Dimensions:

  • G1: 1/4" NPTF
  • G2: 1/4" NPTM
  • NW: 1/4"
  • SW1: 0.87
  • SW2: 0.67
  • L1: 2.55
  • L2: 0.43
  • D: 0.98
  • Weight: 5.7 oz.
