Mosmatic 40.021 Nickel Plated Brass 90 Degree WDG Swivel Rotary Union - 1/4 Inch NPT F x M, 2200 PSI, 30 RPM

Brand:
Mfr. Model #:
40.021
KR Part #:
SWM40021
Weight:
0.51 lbs
Out of Stock - Pre-Order Now
Add to Cart for Price
A swivel made with nickel plated brass. Designed for maintenance free operation. Equipped with 1/4" NPTF and 1/4" NPTM connections.



Technical Specifications

Max PSI: 4000
RPM: 30
Max Temperature: 250 degrees F
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch

Product Description

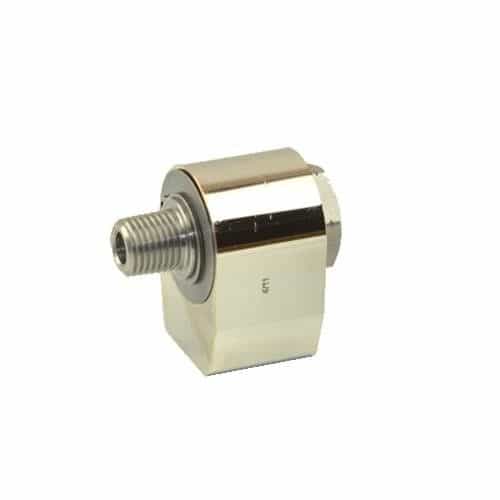

40.021 Ceiling Boom Swivel

The Mosmatic 40.021 rotary union is constructed using brass with a nickel-plated coating and a stainless-steel inner part. Equipped with NBR seals. Handles a maximum pressure of 2200 PSI. Endures a maximum temperature of 250°F. Ideal for applications involving ceiling booms, high-pressure hose reels and high-pressure cleaners.

Specifications:

  • Pressure: 2200 PSI (150 bar)
  • Temperature: 200°F - 250°F
  • 1/4" FNPT x 1/4" MNPT
  • RPM: Max. 30 Rpm
  • Body: Brass, Nickel Plated
  • Inner Part: Stainless Steel
  • Seal: O-Ring NBR (Optional: EPDM Or FKM)
  • Bearing: Sliding Bearing
  • Throughput: Ph 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 Psi)

Applications:

  • Ceiling Booms
  • High Pressure Hose Reels
  • High Pressure Cleaners
