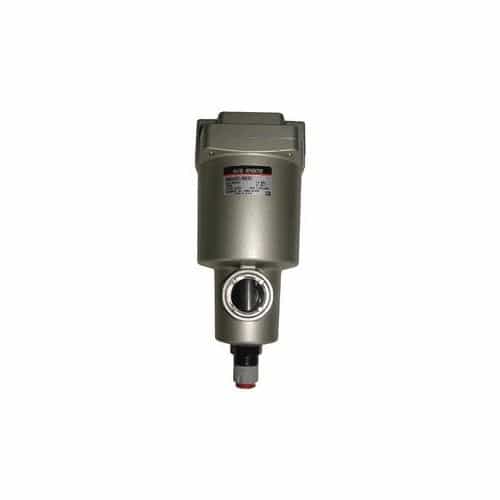

Aluminum Water Separator

The AMG series water separator is installed on the air pressure line to remove water drops in the compressed air. It is suitable for use in cases where "water must be removed, but the air does not have to be as dry as when an air dryer is used" or "an air dryer cannot be used because an electric power supply is not available". Through the adoption of an element that is used exclusively for removing water drops and the provision of ample housing interior space, a 99% water removal rate has been achieved.

Specifications:

• Filter Type: Water Separator

• Body Size: 450C

• Thread Standard: NPT

• Port Size: 1/2" NPT

• Accessory: Bracket (Included but not assembled)

• Drain Type: Normally Closed Auto Drain

• Air Flow Capacity: 78 cfm

• Bowl Options: Metal Bowl With Sight Glass

• Maximum Operating Pressure: 145 PSI

• Fluid Compatibility: Air

• Maximum Operating Temperature: 140 °F

• Element Life: 2 yr.

• Standards Met: CE,CSA,UL,JIS

• Weight: 3.93 lbs.

Dimensions:

• Overall Length: 111 mm

• Overall Width: 106 mm

• Overall Height: 280 mm

Component Materials:

• Body: Aluminum Die-Casted

• Housing: Aluminum Die-Casted

• Sight Glass: Tempered Glass

• Inner Surface: Chrome Treated Epoxy Coating on Inner Surface
