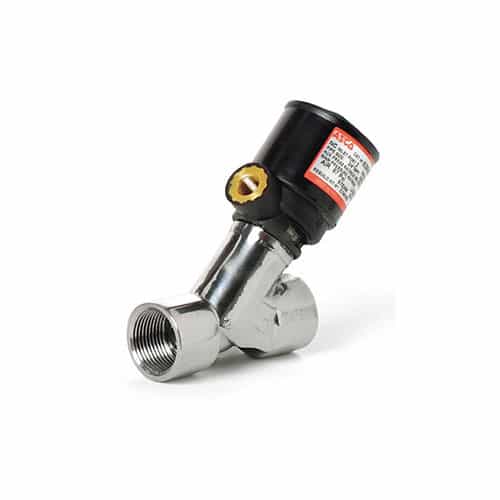

Normally Closed Piston Valve

Air operated valves operated the same way as solenoid valves however, they are powered by air. This valve substitutes a piston in place of the solenoid operator. Constructed using 304L and 316L stainless steel. Valve applications include air, inert gases, light slurries, oil, and water.

Specifications:

• Item: Angle Body Piston Valve
• Solenoid Valve Product Group: Angle Body Piston Valve
• Valve Ways and Positions: 2-Way/2-Position
• Valve Configuration: Normally Closed
• Media - Valves: Air, Inert Gases, Light Slurries, Oil, Water
• Pipe Size - Valves: 3/8 in
• Min. Operating Pressure Differential: 0 PSI
• Max. Operating Pressure Differential Water: 240 PSI
• Max. Operating Pressure Differential Steam: 150 PSI
• Environmental Rating - Valves: Indoor, Outdoor
• Coefficient of Volume: 2.3
• Body Material - Valves: 316L Stainless Steel
• Seal Material - Valves: PTFE
• Orifice Diameter: 3/8 in
• Ambient Temperature Range: 15 Degrees to 140 Degrees F
• Max. Fluid Temperature: 366 Degrees F
• Min. Pilot Pressure: 60 PSI
• Max. Pilot Pressure: 150 PSI
• Stem Material: 316L Stainless Steel
• Disc Material: 304L Stainless Steel
• Operator Size: 32 mm
• Center Line Pipe Center Size: 3 3/16 in
• Viscosity: 2,700 SUS
• Overall Length: 2 1/8 in
• Overall Width: 3 3/5 in
• Overall Height: 3 3/8 in
• Actuator: Pilot Solenoid Valve, Not Included
