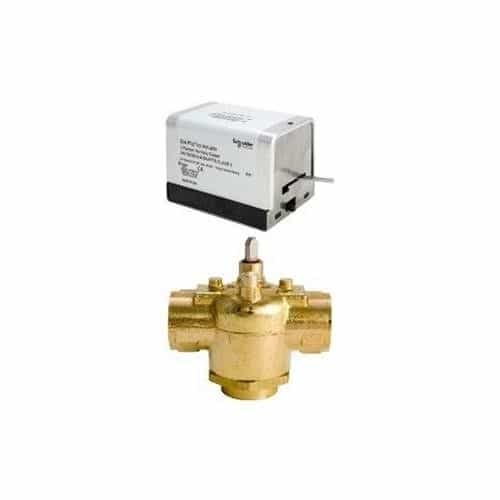

Erie VT3427G13B020 1" 3-Way Solenoid Valve 120 VAC
Brand:
Mfr. Model #:
VT3427G13B020
KR Part #:
SO13500
Weight:
2.30 lbs
Out of stock - Pre-Order Now!
An Erie solenoid valve with a 3-way valve and 1-inch NPT connections. The body is constructed with brass. The housing material is a stainless steel base plate with an aluminum cover. Compatible with 120-volt AC connections. The maximum operating temperature is 200 degrees Fahrenheit.
Technical Specifications
Max Temperature: 200 F
Voltage AC: 120
Product Description
1" 120 Volt Solenoid Valve
This Erie OEM part is a 3-way solenoid valve with a brass body. The housing material is a stainless steel base plate with an aluminum cover. It features 1-inch NPT connections for piping. This electric valve accepts 120 VAC electrical connections. The maximum operating temperature is 200 degrees Fahrenheit while the minimum operating temperature is 32 degrees Fahrenheit. The solenoid valve uses a 3-way diverting configuration and a quick open flow characteristic.
Specifications:
- Valve Body (VT3427):
- 1 in Body Size
- 3-Way Mixing/Diverting
- Zone Valve
- NPT Connection
- Brass Trim
- 8.0 Cv
- 17 Close-Off Pressure (PSI)
- Erie PopTop VT3 Series
- Actuator (AG13B020):
- Electric
- 2-Position (On/Off)
- General Close-Off Pressure
- General Temperature
- Spring Return
- Normally Closed
- 120 VAC
- 18 in Appliance Cable
- Rotary Stem Movement
- NEMA 1 Location
- Erie PopTop AG Series
- For Use with Zone Valves
