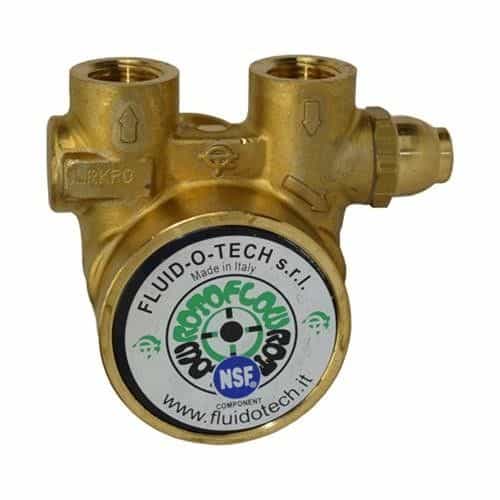

Fluid-O-Tech PA301F Brass Flange-Mount Pump with Bypass, 3/8" Ports, 107 GPH
Brand:
Mfr. Model #:
PA301F
KR Part #:
FTPA301F
Weight:
5.00 lbs
Usually Ships in 2 Weeks
Light-duty, low-volume rotary vane pump with a capacity of up to 107 GPH. Flange mount, relief valve bypass. Brass pump housing, stainless steel rotor, carbon graphite internals.
Technical Specifications
Inlet Port: 3/8 inch
Max GPM: 1.78
RPM: 1725
Max Temperature: 158 degrees F
Max PSI: 290
Product Description
Compact, Low-Volume Brass Body Water Pump with Bypass
Featuring brass housing construction, a stainless steel rotor, and carbon graphite pumping chamber and vanes, the Fluid-O-Tech PA301F is made for low-volume, high-pressure applications with a flow rate of up to 107 GPH. Mounting to the motor through a flange mount, the PA301F connects into the system with 3/8" NPT female inlet and outlet ports. Standard relief valve allows for even pressure regulation. NSF compliant, safe for potable water.
Specifications:
- Pump housing material:Brass
- Shaft construction: Stainless steel
- Internal materials: Carbon graphite
- Pump mount: Flange
- Maximum flow rate: 107 GPH
- Inlet/Discharge ports: 3/8" NPT-F
- Maximum static pressure: 290 PSI
- Maximum temperature: 158° Fahrenheit
- Maximum torque: 1725 RPM
- NSF Compliant (safe for food)
