Rotary Pump

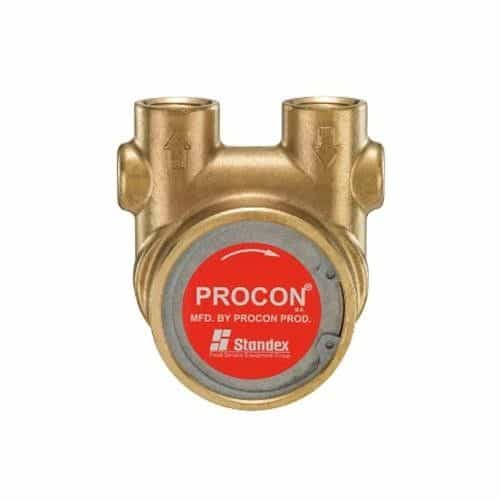

Procon's Series 4 positive displacement rotary vane pump is made to be self-priming in water with a 6 ft. maximum lift. This pump features port sizes with 1/2 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Typically used in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:

• Product Classification: Rotary Vane Pump

• Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval

• Series: Series 4 Brass

• Mounting And Drive Configuration: Long Clamp On With Double Flat Drive

• Flowrate: 240 GPH

• Elastomer: Fluorocarbon - Type 21 Seal

• Rotation / Slinger / Passivation / Strainer: Clockwise

• Clearances: SPCL Clearance (1x) LINER & BRGS

• Valve Type and Configuration:  Plastic, Hi Temp-Solid

• Pressure Range: 60 TO 99 PSI - Default Setting 99 PSI

• Body Material Type: Brass

• Nominal Speed: 1725 RPM

• Typical Horsepower Required: .25 To .50 HP

• Rotation (Viewed from Nameplate End): Clockwise

• Dry Weight: Approximately 4.5 lbs.

• Dimensions: 4.1" x 3.88" x 4.48"

• Self-Priming (Water): 6 Ft. Maximum Lift

• Port Size: 1/2 NPT Inlet and Outlet

• Relief Valve Pressure Setting: 099 PSI


Applications:

• Circulation

• Reverse Osmosis

• Booster Pumps

• Solar Applications

• Hydraulic Systems

• Desalination
