Chemical Proportioner Float Valve with Mount and Backflow - 4 GPM

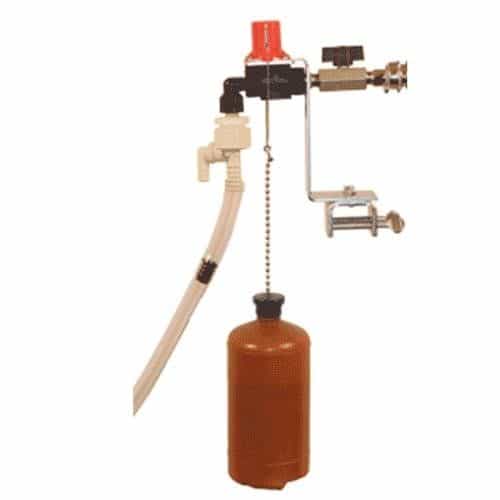

The Dema 440.23TKR Float Valve is part of the Aquamaster 440 Series of valves. This reliable float valve automatically fills and maintains fluids in various reservoirs. This reservoir-mounted float valve is designed to cut service and maintenance costs.

Features an on/off ball valve, a rotating metering barb, and action gap backflow prevention. The float on this valve is filled with water soluble material that won't clog your system if it breaks by accident. Magnetically activated "snap acting" float valves provide full water flow to activate the chemical proportioners. Ideal for car washes, carpet cleaning machines, and rapid filling of totes.

Specifications:

• Maximum Flow Rate: 4 GPM
• Minimum Operational Pressure: 15 PSI
• Maximum Operational Pressure: 150 PSI
• Minimum Temperature: 33° Fahrenheit
• Maximum Temperature: 120° Fahrenheit
• Minimum Induction Rate: 430:1
• Maximum Induction Rate: 4:1
• EPDM seals
• Standard garden hose inlet
• Large 3/8" barb with tip
• Action gap backflow protection

Features & Benefits:

• Mounting bracket included - easy conversion from other systems
• Shut-off ball valve
• For low volume applications
• Inner float material is water soluble
• Strainer on inlet side
• Superior design avoids hang-ups and flooded floors
• 90 degree chemical metering barb rotates 180 degrees to avoid kinking problems experienced with straight barbs
• Action gap backflow protection
