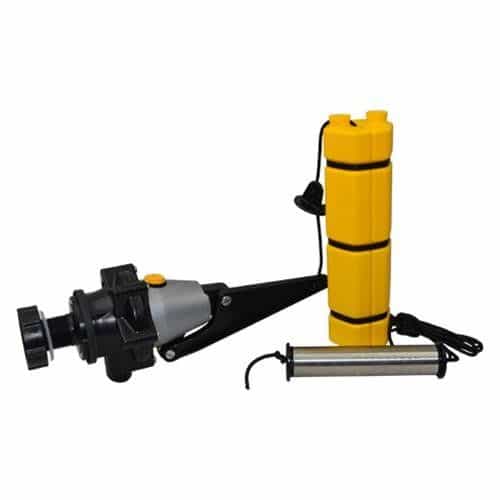

1" NPT Differential Style Float Valve

Topaz Differential Valves are designed to allow the water level to drop to a set distance (50mm to 2.5m) without electricity. These valves are powered entirely by the water pressure and the water level in the tank. It reduces the cycling wear and tear on the pump, and energy wasted when pumps turn off/on prematurely.

Specifications:

• 1" NPT inlet
• 15-150 PSI pressure rating
• 140° Fahrenheit
• 200 L/min

How Does a Differential Valve Work?

• The valve mounts at the top of the tank.
• It fits easily through a thin-walled tank or screws into a threaded tank inlet.
• As the tank empties, the weighted float travels down the cord until it hits the bottom stop.
• The valve then opens immediately to give a full flow.
• The valve now runs constantly and the weighted float rises until it hits the upper float stop.
• This lifts the arm and the valve shuts down.
• Observe the pressure that your pump runs at while the tank is filling.
• Set the pressure switch to turn the pump off at a pressure at least one bar above the running pressure.

Features:

• High flow
• Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m
• Keeps pump operation to a minimum
• DetachTM Valve Seal Access System for quick access to valve seal (Patented)
• Ideal for all makes and models of tanks
• Lead-free

Applications:

• Car Wash Water Storage Tanks
• Industrial Water Storage Tanks
• Water Cisterns
• Irrigation

Part Materials:

• Glass-filled nylon valve body
• Polypropylene filter
• EPDM diaphragm
• Urethane seal
• 304 stainless steel springs, nuts, bolts, pin, and screws
• Nitrile o-rings
• HDPE Float
• Polyester float cord
• ABS actuator, arms, and caps
