Dema 464M5.16.3D 5-Station High Flow Manifold Valve, Non-Metering with 24VAC DIN Coil
Brand:
Mfr. Model #:
464M5.16.3D
KR Part #:
SODM5MSS-HF
Weight:
7.34 lbs
Availability:
3
Low Inventory Get It Today
This high flow direct acting manifold valve has a 1/2" pipe size and 5 stations.
Prop 65
Product Description
AC Solenoid Manifold

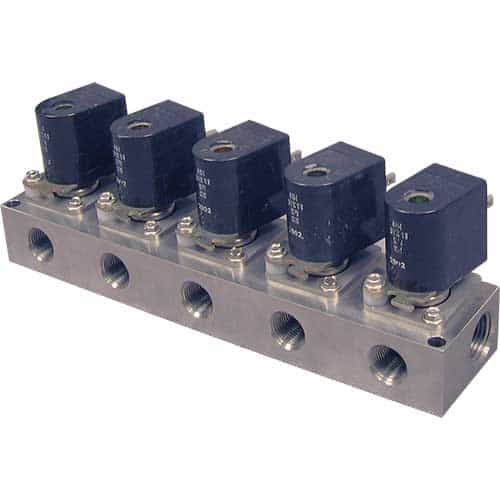

This Dema 464M5.16.3D high flow manifold features a 24V AC Din coil and sturdy brass construction. Featuring 5 stations, the manifold block has a common inlet port for consistent chemical supply across the unit. More than one unit can be combined if necessary. The steam and plunger assembly opens the port of the direct acting valve directly, requiring no minimum pressure to operate.
Pipe Size: 1/2" NPT
- Maximum pressure: 150 PSI
- Body Material: Stainless Steel
- CV Flow Factor #: 2
- GPM at 60 PSI: 15.9
- Rated for 200 degrees Fahrenheit fluid and 120 degrees Fahrenheit ambient
- Non-metering
- 24VAC DIN coil
- 5 station
- Durable stainless steel manifold
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
