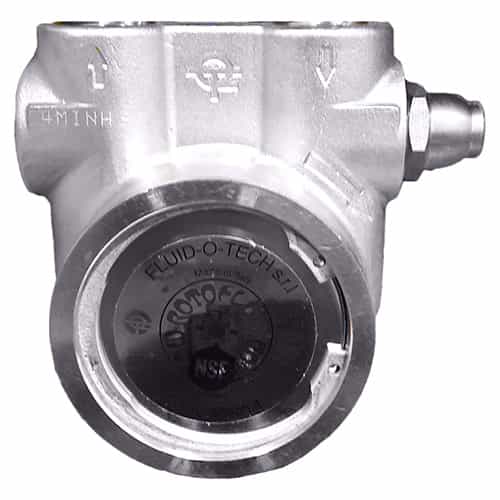

Fluid-O-Tech PA 811 Stainless Steel Clamp Mounted Rotary Vane Pump - 4.4 GPM, 260 PSI, 1/2in. NPTF
Brand:
Mfr. Model #:
PA811
KR Part #:
FTPA811
Weight:
4.04 lbs
Availability:
2
Low Inventory Get It Today
This rotary vane pump is made with stainless steel and carbon graphite. Great for car washes, reverse osmosis, and cooling systems. Female threaded 1/2 NPT ports.
Technical Specifications
Max GPM: 4.4
Max PSI: 260
Max Temperature: 158 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
811 Series Vane Pump
Fluid-O-Tech's rotary vane pumps are crafted with stainless steel. High impact carbon graphite is used for the pumping chamber and the vanes. This pump is mounted using a clamp. Port measure 1/2 NPT female threaded ports.
Specifications:
- Item: Rotary Vane Pump
- Inlet/Outlet NPTF (In.): 1/2 in
- Max. Flow (GPH): 264
- Min. Flow Rate (GPH): 245
- Relief Pressure Max. (PSI): 260
- Max. Pressure (PSI): 260 PSI
- Body Material: Stainless Steel
- External Relief: Not Required
- By-Pass: Yes
- Mounting: 3-Bolt Flange
- Max. Temp. (F): 158 Degrees F
- Shaft: Stainless Steel
- GPH of Water @ 50 PSI: 261
- GPH of Water @ 100 PSI: 259
- GPH of Water @ 150 PSI: 256
- GPH of Water @ 200 PSI: 253
- GPH of Water @ 250 PSI: 245
- GPH: 264
- Compliance: NSF
