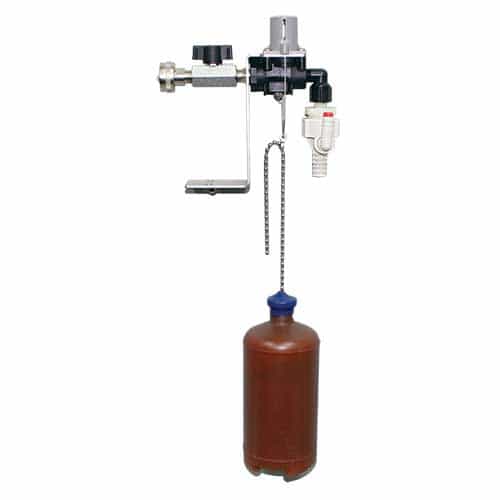

Chemical injector float valve with a shut-off ball valve, rotatable metering barb, and float filled with soluble material. NOTE: This float valve does NOT come with a mounting bracket.

More Info...

Prop 65

Technical Specifications

Inlet Port: 3/4 inch

Max PSI: 150

Max Temperature: 120 degrees F

Max GPM: 4

Product Description

Chemical Proportioner Float Valve with Bracket - 4 GPM

The Dema 440.22TKRX Float Valve is part of the Aquamaster 440 Series of valves. This reliable float valve automatically fills and maintains fluids in various reservoirs. This Dema float valve is designed to cut service and maintenance costs.

Features an on/off ball valve, a rotating metering barb, and a float filled with water soluble material that won't clog your system if it breaks by accident. Magnetically activated "snap acting" float valves provide full water flow to activate the chemical proportioners. Ideal for car washes, carpet cleaning machines, and rapid filling of totes.

Specifications:

Maximum Flow Rate: 4 GPM
Minimum Operational Pressure: 15 PSI
Maximum Operational Pressure: 150 PSI
Minimum Temperature: 33° Fahrenheit
Maximum Temperature: 120° Fahrenheit
Minimum Induction Rate: 430:1
Maximum Induction Rate: 4:1
EPDM seals
Standard garden hose inlet
Large 3/8" barb with tip
No backflow preventer

Features & Benefits:

Shut-off ball valve
For low volume applications
Inner float material is water soluble
Strainer on inlet side
Superior design avoids hang-ups and flooded floors
90 degree chemical metering barb rotates 180 degrees to avoid kinking problems experienced with straight barbs
