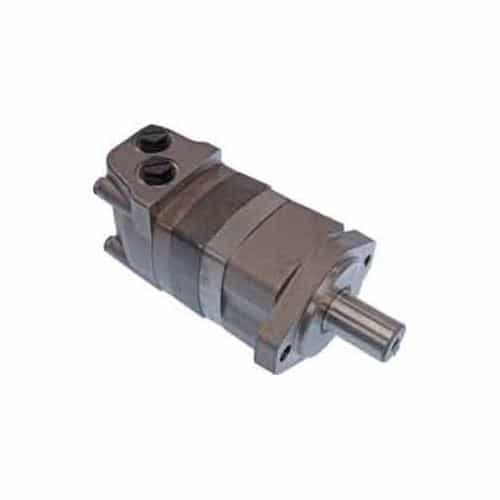

2-Bolt Flanged Motor

Char-Lynn 104-1012-006 is a 2000 Series motor with a 7/8-inch ring size. It is built with a 2-bolt flange with a 3 1/4-inch diameter. The motor is engineered to withstand a maximum pressure of 3000 PSI and a flow rate of 20 GPM. Motor shaft handles a continuous speed of 246 RPM. Torque produced by this motor is 4779 in.

Specifications:

• Actual Mounting Flange: 2-Bolt Flange - Sae A - With 3-1/4 In. Pilot Dia.
• Actual Output Shaft: Taper
• Actual Port Type: .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports
• Continuous Flow Rate: 75 L/min
• Continuous Torque: 4779 in
• Displacement: 11.89 in³/r
• Drain Connection Size: .4375-20 Unf-2b O-ring Port Size -4
• Intermittent Pressure: 260 bar
• Maximum Continuous Oil Viscosity: 70 Saybold universal second
• Maximum Flow Rate: 20 gpm
• Maximum Operating Pressure: 3000 psi
• Maximum Operating Temperature: 180 °F
• Maximum RPM: 385 rpm
• Maximum RPM-Continuous: 246 rpm
• Maximum System Operating Temperature: -34°C to 82 °C
• Motor Port Size: 7/8–14 UNF-2B
• Motor Port Type: Straight Thread O-Ring SAE
• Mounting Type: 2-Bolt Flange - 3.25 in Pilot - SAE A
• Operation Mode: Continuous Rating - Motor May Be Run
• Continuously At These Ratings. / Intermittent Operation - 10
• Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute
• Output Shaft Size: 1-1/4 in Tapered - Threaded End
• Overall Height: 6.96 in
• Overall Length: 10.17 in
• Overall Width: 5.16 in
• Port Configuration: .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports
