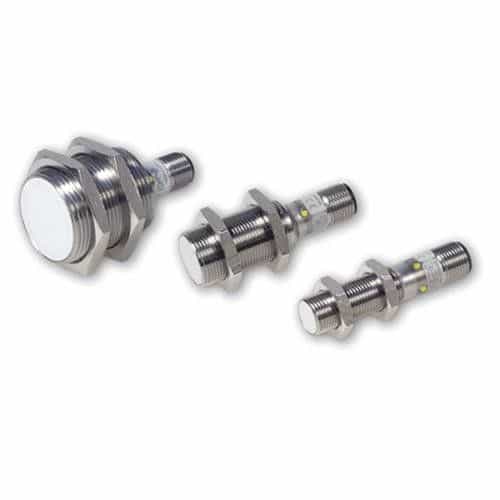

IFM Efector IIT001 Flush Mount Inductive Sensor - 14mm
Brand:
Mfr. Model #:
IIT001
KR Part #:
IFM001
Weight:
0.33 lbs
This inductive sensor operates with a supply voltage of 20-140 V AC/DC, with a 14mm sensing range, and NO contact. Flush Installation. Ideal for car wash and food industry applications - great resistance to high-pressure cleaning chemicals with aggressive cleaning agents.
Product Description
14mm Inductive Sensor
The IIT001 inductive sensor carries a high protection rating IP68/IP69K, tolerates a wide temperature range and has a lasered type label. The housing is high grade stainless steel with a PEEK sensing face. Connects with a 1/2in. micro 3 pin AC.
Specfications:
- Cylindrical, threaded, stainless steel sensor
- Flush mount installation
- 14 mm Sensing range
- Operating voltage 20-140V AC/DC
- Switching frequency 25AC / 100DC
- Temp range: 32 - 212 degrees F
- M30 x 1.5
- Connection: 1/2in. Micro AC 3-pin
- CE, cULus, CCC listed
- Protection rating: IP68/IP69K
- UPC: 4021179118118
