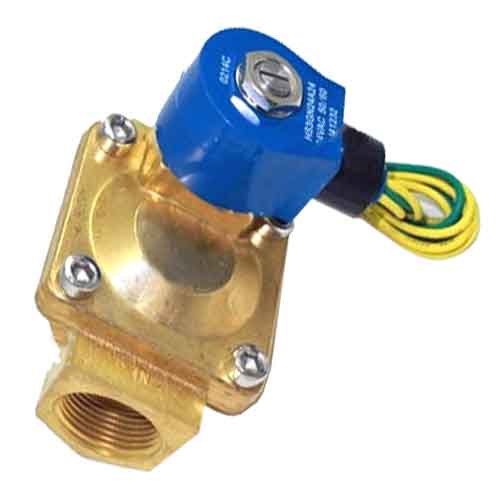

G.C. Valves S711GF24N9FG9 Brass Normally Closed Solenoid Valve, 1 in., 24 VAC, Conduit Housing
Brand:
Mfr. Model #:
S711GF24N9FG9
KR Part #:
GC503
Weight:
3.32 lbs
Normally closed brass 2-way piloted diaphragm solenoid valve. Nitrile seals, copper shading ring. 24 VAC/50hz required for power. NEMA 4/4X fully encapsulated conduit housing, 24" lead wires, 1/2" conduit hub.
Technical Specifications
Inlet Port: 1 inch
Outlet Port: 1 inch
Orifice: 1 inch
Voltage AC: 24
Max PSI: 200
Max Temperature: 180 degrees F
Product Description
2-Way Piloted Solenoid Valve
The G.C. Valves S711GF24N9FG9 valve is a normally closed 1" solenoid valve featuring a brass body, nitrile seals, and copper shading ring for reliability and durability. Able to withstand temperatures up to 180° Fahrenheit and pressures up to 400 PSI, this valve is a dependable option for use in your car wash! Please note that this valve requires a 24 VAC/50hz electrical connection. NEMA 4/4X fully encapsulated conduit housing, 24" lead wires, 1/2" conduit hub.
Specifications:
- Voltage: 24 VAC
- Valve Size: 1" NPT
- Orifice Size: 1"
- Max Pressure: 400 PSI
- Max Temperature: 180°F
- Class F Coil
