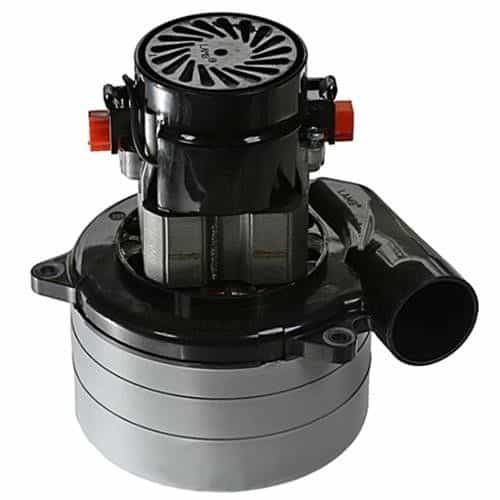

Tangential Motor

This is a 3-stage vacuum motor with double ball bearings that operates at a single speed. The motor utilizes a tangential bypass discharge system. Suitable for 36-Volt power. Handles clean dry air only.

Specifications:

• Motor Type: Bypass

• Discharge: Tangential

• Bearings: Double Ball Bearing

• Sealed Vacuum: 74 inches

• Maximum Air Watts: 185

• Maximum Air Flow: 76 CFM

• Maximum Amps: 17.90

• Motor Speed: 14,188 RPM

• Voltage: 36

• Diameter: 5.7 Inch
