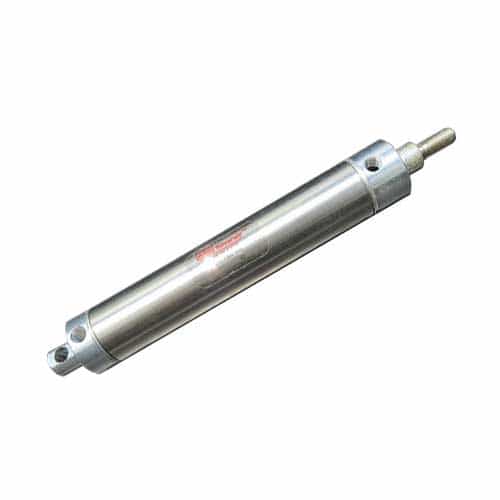

Aro SD15-P4B4-060 Silverair Double Acting Air Cylinder - 1 1/2in. Bore
Brand:
Mfr. Model #:
SD15-P4B4-060
KR Part #:
AC1070
Weight:
3.00 lbs
Usually Ships in 2 Weeks
A Series S Silverair round cylinder designed for OEM and MRO applications where a disposable, light duty cylinder is preferred.
Technical Specifications
Bore: 1 1/2 inch
Max PSI: 200
Max Temperature: 160 degrees F
Min Temperature: -40 degrees F
Inlet Port: 1/8 inch
Stroke: 6 inch
Product Description
Replacement Stainless Steel Pneumatic Cylinder
Silverair stainless steel pneumatic actuators are prelubed and suitable for operations without externally applied lubrication. Silverair cylinders are constructed of stainless steel and aluminum to withstand corrosive environments.Specifications:
- 304 stainless steel barrel
- 303 stainless steel piston rods
- Aluminum head
- Oil-permeated bronze rod bushing
- High-tensile alloy return springs
- 6" Stroke
- 1 1/2" Bore
- 1/8" Port
- 7/16"-20 rod thread
- 200 PSI max
- Temp range: -40 to 160 degrees F
