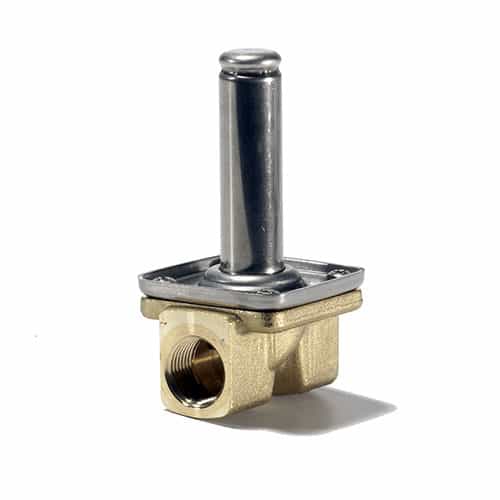

Danfoss 032U5807 Brass Normally Closed 2 Way Solenoid Valve - 3/8 Inch, 290 PSI
Brand:
Mfr. Model #:
032U5807
KR Part #:
DF032U5807
Weight:
2.00 lbs
Usually Ships in 2 Weeks
This servo-operated solenoid valve is made with DZR brass. Tolerates 212-degree fluids. Safe for use with drinking water.
Product Description
Servo-Operated Solenoid Valve
This valve is manufactured with dezincification-resistant brass. Can be used with applications involving drinking water (max. 90 °c), hot water (max 140 °c) and technical water. Valve operates via a servo-operated diaphragm. Maximum temperature the valve tolerates is 212 degrees Fahrenheit.
Specifications:
- Gross Weight: 0.24 Kg
- Net Weight: 0.22 Kg
- EAN: 5702423054503
- Actuator: B
- Actuator Size: 13.5 Mm
- Actuator Size [In]: 0.53 In
- Actuator System [Mm]: 13.5 Mm
- Ambient Temperature Max. [°C]: 80 °C
- Ambient Temperature Max. [°F]: 176 °F
- Approval: SINTEF, WRAS
- Body Material: DZR Brass
- Connection Internal/External: Internal
- Connection Material: DZR Brass
- Connection Size [In]: 3/8
- Connection Standard: ISO 228-1
- Connection Type: G
- Cv Value [Gal/Min]: 0.8 Gal/Min
- Differential Pressure [Bar] [Max]: 20 Bar
- Differential Pressure [Bar] [Min]: 0.1 Bar
- Differential Pressure [PSI] [Max] : 290 PSI
- Differential Pressure [PSI] [Min]: 1.45 PSI
- Est. Time to Close, Water [Ms]: 250 Ms
- Est. Time to Open, Water [Ms]: 40 Ms
- Flow Direction: Single-Flow
- Flow Direction Indicator: Embossed 1-Way Arrow
- Fluid Group: I
- Function: NC
- Kv Value [M_/H] : 0.7 M_/H
- Max Media Viscosity [Cst]: 50 Cst
- Max. Test Pressure [Bar]: 30 Bar
- Max. Test Pressure [PSIG]: 435 PSIG
- Max. Working Pressure [Bar]: 20 Bar
- Max. Working Pressure [PSIG]: 290 PSIG
- Media recommendations: Drinking Water (Max. 90 °C), Hot water (Max 140 °C), Technical Water
- Media Tolerance Comments: Slightly Aggressive Media
- Medium Temperature Range [°C] [Max]: 100 °C
- Medium Temperature Range [°C] [Min]: -30 °C
- Medium Temperature Range [°F] [Max]: 212 °F
- Medium Temperature Range [°F] [Min]: -22 °F
- Number of Ways: 2/2
- Operation: Servo-operated (diaphragm)
- Orifice Size [mm]: 6 mm
- Orifice Size Fraction [in]: 1/4 in
- Parts Program Name: EV220B 6 - 22
- Product Accessories: Solenoid Valve Accessories
- Product Group: Solenoid Valves
- Product Name: Solenoid valve
- Quantity Per Packing Format: 20 pc
- Seal Material: EPDM
- Serviceable: Solenoid valve spare parts
- Specification Key: EV220B 6BD G 38E NC000
- Type: EV220B
- Type designation: EV220B 6
