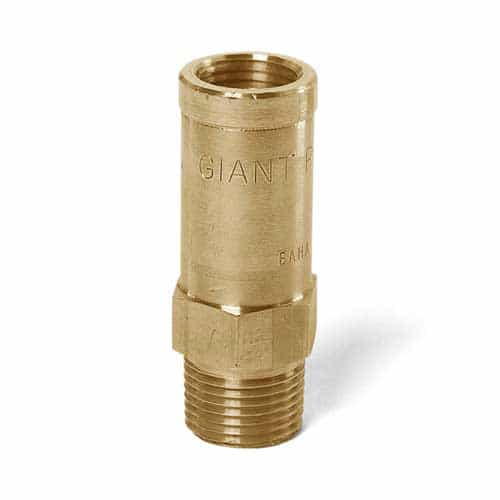

3600 PSI Pop-Off Valve

Brass Giant Pumps 22532A pop-off valve is designed to relieve the system of higher-than-normal pressure to prevent damage to system from overpressurization. Trigger pressure is usually set 15-20% above normal operating pressure. Once the pressure falls below the set point, it will automatically re-set. Use in conjunction with pressure-actuated unloaders and regulators as a fail-safe.

Specifications:

• Max Flow: 10 GPM
• Min Flow: 1 GPM
• Max Pressure: 3600 PSI
• Min Pressure: 2400 PSI
• Max Temp: 160°F
• Inlet Port: 3/8" NPT
• Outlet Port: 3/4" Hose Barb
