SMC 3820090 Brass Short Handle Ball Valve - 3/8in. MNPT x FNPT
Brand:
Mfr. Model #:
3820090
KR Part #:
VL0027
Weight:
0.19 lbs

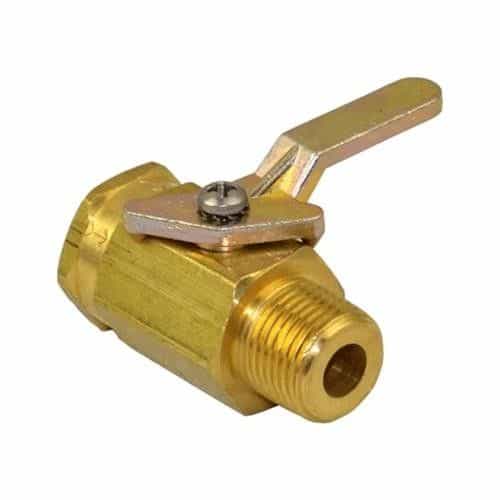

Compact brass standard ball valve fitting made for use in car wash and a variety of other plumbing applications. This 3/8 inch ball valve is made with a one-piece forged brass housing and solid chrome plated brass ball. One way flow, pressure-rated at 500 PSI, 3/8" NPT ends, one male and one female for 3/8" diameter pipes.
Technical Specifications
Max Temperature: 180 degrees F
Max PSI: 500
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Product Description
3/8" M x F NPT Mini Inline Brass Ball Valves
The compact brass standard 3/8 inch ball valve is made for use in car wash applications. Small footprint with short level handle is ideal for tight, confined areas or for better aesthetics. Made with a one-piece forged brass housing and solid chrome plated brass ball with standard threaded connection type. We also offer similar valves made of stainless steel for additional corrosion resistance.
Specifications:
- Suitable for full range of liquids and gases
- Pressure rated at 500 PSI
- Max Temp: 180°F
- Fast 1/4 turn open or close operation
- Low operating torque
- Type: One-way flow
- Size: 3/8" MNPT x 3/8" FNPT
- Material: Brass
